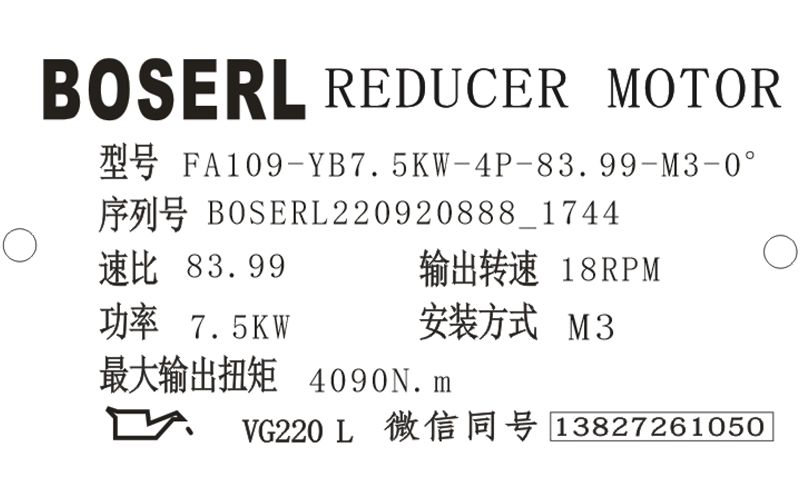

FA109減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FA109減速器選型樣本。

FA109-YB7.5KW-4P-83.99-M3-0°

FA：系列代號

109：減速機規格代號

YB：電機

7.5KW：電機功率

4P：電機級數

83.99：減速機傳動比

M3：減速機安裝位置

0°：接線盒位置

FA109減速器逆止器安裝：

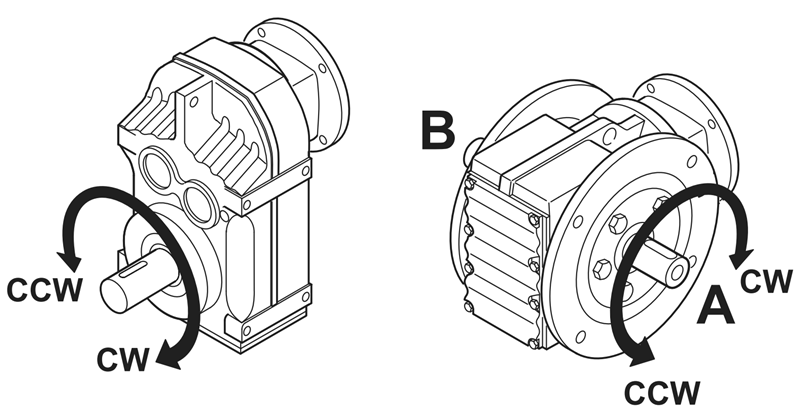

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。平行軸斜齒輪減速機

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

FA109減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。分體電機減速機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

FA109減速器潤滑油檢查：

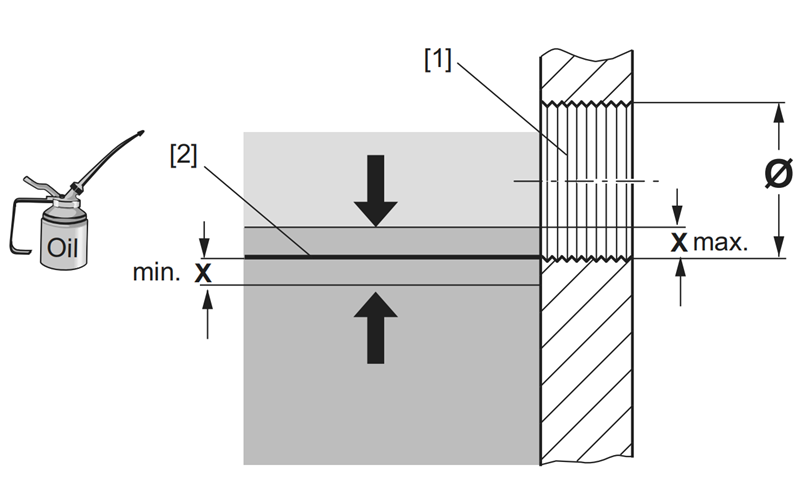

將一個容器置于油位檢查螺栓的下方；慢慢旋出油位檢查螺栓。由于最大許可注油高度超過了油位孔的下緣，因此在旋出螺栓時可能有少量油漏出；據下圖及相關表格檢查油位。

若油位過低則操作如下：旋入透氣螺栓；將同類潤滑油注入透氣孔直至油位檢查孔的下緣；重新旋入透氣螺塞。

重新旋入油位檢查螺栓，通過放油螺栓檢查油質。齒輪減速電機

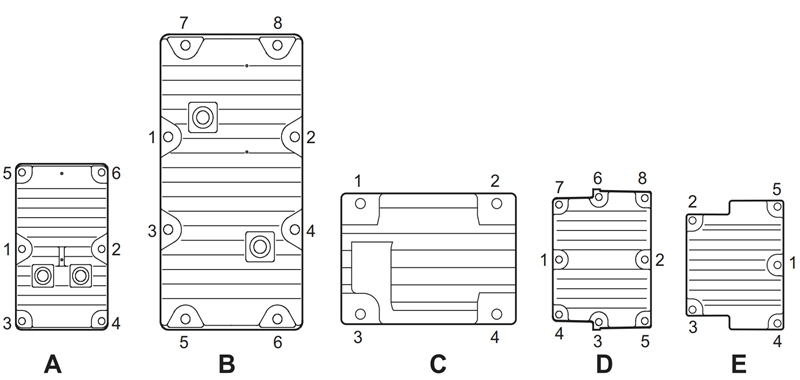

重新裝上安裝蓋，根據下表中的標稱擰緊扭矩按照圖中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。

FA109減速器型號：

XDFA107-Y1.5KW，XDFA107-Y100M4，XDFA107-Y112M4，XDFA107-Y11KW，XDFA107-Y132M4，XDFA107-Y15KW，XDFA107-Y160M4，XDFA107-Y18.5KW，XDFA107-Y180M4，XDFA107-Y2.2KW，XDFA107-Y200M4，XDFA107-Y225M4，XDFA107-Y22KW，XDFA107-Y30KW，XDFA107-Y37KW，XDFA107-Y3KW，XDFA107-Y45KW，XDFA107-Y4KW，XDFA107-Y5.5KW，XDFA107-Y7.5KW，XDFA107-Y80M4，XDFA107-Y90M4，XDFA107-YB100M4，XDFA107-YB112M4，XDFA107-YB132M4，XDFA107-YB160M4，XDFA107-YB180M4，XDFA107-YB200M4，XDFA107-YB225M4，XDFA107-YB80M4，XDFA107-YB90M4，XDFA107-YDP100M4，XDFA107-YDP112M4，XDFA107-YDP132M4，XDFA107-YDP160M4，XDFA107-YDP180M4，XDFA107-YDP200M4，XDFA107-YDP225M4，XDFA107-YDP80M4，XDFA107-YDP90M4，XDFA107-YE100M4，XDFA107-YE112M4，XDFA107-YE132M4，XDFA107-YE160M4，XDFA107-YE180M4，XDFA107-YE200M4，XDFA107-YE225M4，XDFA107-YE80M4，XDFA107-YE90M4，XDFA107-YEJ100M4，XDFA107-YEJ112M4，XDFA107-YEJ132M4，XDFA107-YEJ160M4，XDFA107-YEJ180M4，XDFA107-YEJ200M4，XDFA107-YEJ225M4，XDFA107-YEJ80M4，XDFA107-YEJ90M4，XDFA107-YEJB100M4，XDFA107-YEJB112M4，XDFA107-YEJB132M4，XDFA107-YEJB160M4，XDFA107-YEJB180M4，XDFA107-YEJB200M4，XDFA107-YEJB225M4，XDFA107-YEJB80M4，XDFA107-YEJB90M4，XDFA107-YP100M4，XDFA107-YP112M4，XDFA107-YP132M4，XDFA107-YP160M4，XDFA107-YP180M4，XDFA107-YP200M4，XDFA107-YP225M4，XDFA107-YP80M4，XDFA107-YP90M4，XDFA107-YPB100M4，XDFA107-YPB112M4，XDFA107-YPB132M4，XDFA107-YPB160M4，XDFA107-YPB180M4，XDFA107-YPB200M4，XDFA107-YPB225M4，XDFA107-YPB80M4，XDFA107-YPB90M4，XDFA107-YPE100M4，XDFA107-YPE112M4，XDFA107-YPE132M4，XDFA107-YPE160M4，XDFA107-YPE180M4，XDFA107-YPE200M4，XDFA107-YPE225M4，XDFA107-YPE80M4，XDFA107-YPE90M4，XDFA107-YS100M4，XDFA107-YS112M4，XDFA107-YS132M4，XDFA107-YS160M4，XDFA107-YS180M4，XDFA107-YS200M4，XDFA107-YS225M4，XDFA107-YS80M4，XDFA107-YS90M4，XDFA107-YVB100M4，XDFA107-YVB112M4，XDFA107-YVB132M4，XDFA107-YVB160M4，XDFA107-YVB180M4，XDFA107-YVB200M4，XDFA107-YVB225M4，XDFA107-YVB80M4，XDFA107-YVB90M4，XDFA107-YVP100M4，XDFA107-YVP112M4，XDFA107-YVP132M4，XDFA107-YVP160M4，XDFA107-YVP180M4，XDFA107-YVP200M4，XDFA107-YVP225M4，XDFA107-YVP80M4，XDFA107-YVP90M4，XDFA107-YVPEJ100M4，XDFA107-YVPEJ112M4，XDFA107-YVPEJ132M4，XDFA107-YVPEJ160M4，XDFA107-YVPEJ180M4，XDFA107-YVPEJ200M4，XDFA107-YVPEJ225M4，XDFA107-YVPEJ80M4，XDFA107-YVPEJ90M4，YQFA107-Y1.5KW，YQFA107-Y100M4，YQFA107-Y112M4，YQFA107-Y11KW，YQFA107-Y132M4，YQFA107-Y15KW，YQFA107-Y160M4，YQFA107-Y18.5KW，YQFA107-Y180M4，YQFA107-Y2.2KW，YQFA107-Y200M4，YQFA107-Y225M4，YQFA107-Y22KW，YQFA107-Y30KW，YQFA107-Y37KW，YQFA107-Y3KW，YQFA107-Y45KW，YQFA107-Y4KW，YQFA107-Y5.5KW，YQFA107-Y7.5KW，YQFA107-Y80M4，YQFA107-Y90M4，YQFA107-YB100M4，YQFA107-YB112M4，YQFA107-YB132M4，YQFA107-YB160M4，YQFA107-YB180M4，YQFA107-YB200M4，YQFA107-YB225M4，YQFA107-YB80M4，YQFA107-YB90M4，YQFA107-YDP100M4，YQFA107-YDP112M4，YQFA107-YDP132M4，YQFA107-YDP160M4，YQFA107-YDP180M4，YQFA107-YDP200M4，YQFA107-YDP225M4，YQFA107-YDP80M4，YQFA107-YDP90M4，YQFA107-YE100M4，YQFA107-YE112M4，YQFA107-YE132M4，YQFA107-YE160M4，YQFA107-YE180M4，YQFA107-YE200M4，YQFA107-YE225M4，YQFA107-YE80M4，YQFA107-YE90M4，YQFA107-YEJ100M4，YQFA107-YEJ112M4，YQFA107-YEJ132M4，YQFA107-YEJ160M4，YQFA107-YEJ180M4，YQFA107-YEJ200M4，YQFA107-YEJ225M4，YQFA107-YEJ80M4，YQFA107-YEJ90M4，YQFA107-YEJB100M4，YQFA107-YEJB112M4，YQFA107-YEJB132M4，YQFA107-YEJB160M4，YQFA107-YEJB180M4，YQFA107-YEJB200M4，YQFA107-YEJB225M4，YQFA107-YEJB80M4，YQFA107-YEJB90M4，YQFA107-YP100M4，YQFA107-YP112M4，YQFA107-YP132M4，YQFA107-YP160M4，YQFA107-YP180M4，YQFA107-YP200M4，YQFA107-YP225M4，YQFA107-YP80M4，YQFA107-YP90M4，YQFA107-YPB100M4，YQFA107-YPB112M4，YQFA107-YPB132M4，YQFA107-YPB160M4，YQFA107-YPB180M4，YQFA107-YPB200M4，YQFA107-YPB225M4，YQFA107-YPB80M4，YQFA107-YPB90M4，YQFA107-YPE100M4，YQFA107-YPE112M4，YQFA107-YPE132M4，YQFA107-YPE160M4，YQFA107-YPE180M4，YQFA107-YPE200M4，YQFA107-YPE225M4，YQFA107-YPE80M4，YQFA107-YPE90M4，YQFA107-YS100M4，YQFA107-YS112M4，YQFA107-YS132M4，YQFA107-YS160M4，YQFA107-YS180M4，YQFA107-YS200M4，YQFA107-YS225M4，YQFA107-YS80M4，YQFA107-YS90M4，YQFA107-YVB100M4，YQFA107-YVB112M4，YQFA107-YVB132M4，YQFA107-YVB160M4，YQFA107-YVB180M4，YQFA107-YVB200M4，YQFA107-YVB225M4，YQFA107-YVB80M4，YQFA107-YVB90M4，YQFA107-YVP100M4，YQFA107-YVP112M4，YQFA107-YVP132M4，YQFA107-YVP160M4，YQFA107-YVP180M4，YQFA107-YVP200M4，YQFA107-YVP225M4，YQFA107-YVP80M4，YQFA107-YVP90M4，YQFA107-YVPEJ100M4，YQFA107-YVPEJ112M4，YQFA107-YVPEJ132M4，YQFA107-YVPEJ160M4，YQFA107-YVPEJ180M4，YQFA107-YVPEJ200M4，YQFA107-YVPEJ225M4，YQFA107-YVPEJ80M4，YQFA107-YVPEJ90M4，JCFA107-Y1.5KW，JCFA107-Y100M4，JCFA107-Y112M4，JCFA107-Y11KW，JCFA107-Y132M4，JCFA107-Y15KW，JCFA107-Y160M4，JCFA107-Y18.5KW，JCFA107-Y180M4，JCFA107-Y2.2KW，JCFA107-Y200M4，JCFA107-Y225M4，JCFA107-Y22KW，JCFA107-Y30KW，JCFA107-Y37KW，JCFA107-Y3KW，JCFA107-Y45KW，JCFA107-Y4KW，JCFA107-Y5.5KW，JCFA107-Y7.5KW，JCFA107-Y80M4，JCFA107-Y90M4，JCFA107-YB100M4，JCFA107-YB112M4，JCFA107-YB132M4，JCFA107-YB160M4，JCFA107-YB180M4，JCFA107-YB200M4，JCFA107-YB225M4，JCFA107-YB80M4，JCFA107-YB90M4，JCFA107-YDP100M4，JCFA107-YDP112M4，JCFA107-YDP132M4，JCFA107-YDP160M4，JCFA107-YDP180M4，JCFA107-YDP200M4，JCFA107-YDP225M4，JCFA107-YDP80M4，JCFA107-YDP90M4，JCFA107-YE100M4，JCFA107-YE112M4，JCFA107-YE132M4，JCFA107-YE160M4，JCFA107-YE180M4，JCFA107-YE200M4，JCFA107-YE225M4，JCFA107-YE80M4，JCFA107-YE90M4，JCFA107-YEJ100M4，JCFA107-YEJ112M4，JCFA107-YEJ132M4，JCFA107-YEJ160M4，JCFA107-YEJ180M4，JCFA107-YEJ200M4，JCFA107-YEJ225M4，JCFA107-YEJ80M4，JCFA107-YEJ90M4，JCFA107-YEJB100M4，JCFA107-YEJB112M4，JCFA107-YEJB132M4，JCFA107-YEJB160M4，JCFA107-YEJB180M4，JCFA107-YEJB200M4，JCFA107-YEJB225M4，JCFA107-YEJB80M4，JCFA107-YEJB90M4，JCFA107-YP100M4，JCFA107-YP112M4，JCFA107-YP132M4，JCFA107-YP160M4，JCFA107-YP180M4，JCFA107-YP200M4，JCFA107-YP225M4，JCFA107-YP80M4，JCFA107-YP90M4，JCFA107-YPB100M4，JCFA107-YPB112M4，JCFA107-YPB132M4，JCFA107-YPB160M4，JCFA107-YPB180M4，JCFA107-YPB200M4，JCFA107-YPB225M4，JCFA107-YPB80M4，JCFA107-YPB90M4，JCFA107-YPE100M4，JCFA107-YPE112M4，JCFA107-YPE132M4，JCFA107-YPE160M4，JCFA107-YPE180M4，JCFA107-YPE200M4，JCFA107-YPE225M4，JCFA107-YPE80M4，JCFA107-YPE90M4，JCFA107-YS100M4，JCFA107-YS112M4，JCFA107-YS132M4，JCFA107-YS160M4，JCFA107-YS180M4，JCFA107-YS200M4，JCFA107-YS225M4，JCFA107-YS80M4，JCFA107-YS90M4，JCFA107-YVB100M4，JCFA107-YVB112M4，JCFA107-YVB132M4，JCFA107-YVB160M4，JCFA107-YVB180M4，JCFA107-YVB200M4，JCFA107-YVB225M4，JCFA107-YVB80M4，JCFA107-YVB90M4，JCFA107-YVP100M4，JCFA107-YVP112M4，JCFA107-YVP132M4，JCFA107-YVP160M4，JCFA107-YVP180M4，JCFA107-YVP200M4，JCFA107-YVP225M4，JCFA107-YVP80M4，JCFA107-YVP90M4，JCFA107-YVPEJ100M4，JCFA107-YVPEJ112M4，JCFA107-YVPEJ132M4，JCFA107-YVPEJ160M4，JCFA107-YVPEJ180M4，JCFA107-YVPEJ200M4，JCFA107-YVPEJ225M4，JCFA107-YVPEJ80M4，JCFA107-YVPEJ90M4，F(xiàn)WA107-Y1.5KW，F(xiàn)WA107-Y100M4，F(xiàn)WA107-Y112M4，F(xiàn)WA107-Y11KW，F(xiàn)WA107-Y132M4，F(xiàn)WA107-Y15KW，F(xiàn)WA107-Y160M4，F(xiàn)WA107-Y18.5KW，F(xiàn)WA107-Y180M4，F(xiàn)WA107-Y2.2KW，F(xiàn)WA107-Y200M4，F(xiàn)WA107-Y225M4，F(xiàn)WA107-Y22KW，F(xiàn)WA107-Y30KW，F(xiàn)WA107-Y37KW，F(xiàn)WA107-Y3KW，F(xiàn)WA107-Y45KW，F(xiàn)WA107-Y4KW，F(xiàn)WA107-Y5.5KW，F(xiàn)WA107-Y7.5KW，F(xiàn)WA107-Y80M4，F(xiàn)WA107-Y90M4，F(xiàn)WA107-YB100M4，F(xiàn)WA107-YB112M4，F(xiàn)WA107-YB132M4，F(xiàn)WA107-YB160M4，F(xiàn)WA107-YB180M4，F(xiàn)WA107-YB200M4，F(xiàn)WA107-YB225M4，F(xiàn)WA107-YB80M4，F(xiàn)WA107-YB90M4，F(xiàn)WA107-YDP100M4，F(xiàn)WA107-YDP112M4，F(xiàn)WA107-YDP132M4，F(xiàn)WA107-YDP160M4，F(xiàn)WA107-YDP180M4，F(xiàn)WA107-YDP200M4，F(xiàn)WA107-YDP225M4，F(xiàn)WA107-YDP80M4，F(xiàn)WA107-YDP90M4，F(xiàn)WA107-YE100M4，F(xiàn)WA107-YE112M4，F(xiàn)WA107-YE132M4，F(xiàn)WA107-YE160M4，F(xiàn)WA107-YE180M4，F(xiàn)WA107-YE200M4，F(xiàn)WA107-YE225M4，F(xiàn)WA107-YE80M4，F(xiàn)WA107-YE90M4，F(xiàn)WA107-YEJ100M4，F(xiàn)WA107-YEJ112M4，F(xiàn)WA107-YEJ132M4，F(xiàn)WA107-YEJ160M4，F(xiàn)WA107-YEJ180M4，F(xiàn)WA107-YEJ200M4，F(xiàn)WA107-YEJ225M4，F(xiàn)WA107-YEJ80M4，F(xiàn)WA107-YEJ90M4，F(xiàn)WA107-YEJB100M4，F(xiàn)WA107-YEJB112M4，F(xiàn)WA107-YEJB132M4，F(xiàn)WA107-YEJB160M4，F(xiàn)WA107-YEJB180M4，F(xiàn)WA107-YEJB200M4，F(xiàn)WA107-YEJB225M4，F(xiàn)WA107-YEJB80M4，F(xiàn)WA107-YEJB90M4，F(xiàn)WA107-YP100M4，F(xiàn)WA107-YP112M4，F(xiàn)WA107-YP132M4，F(xiàn)WA107-YP160M4，F(xiàn)WA107-YP180M4，F(xiàn)WA107-YP200M4，F(xiàn)WA107-YP225M4，F(xiàn)WA107-YP80M4，F(xiàn)WA107-YP90M4，F(xiàn)WA107-YPB100M4，F(xiàn)WA107-YPB112M4，F(xiàn)WA107-YPB132M4，F(xiàn)WA107-YPB160M4，F(xiàn)WA107-YPB180M4，F(xiàn)WA107-YPB200M4，F(xiàn)WA107-YPB225M4，F(xiàn)WA107-YPB80M4，F(xiàn)WA107-YPB90M4，F(xiàn)WA107-YPE100M4，F(xiàn)WA107-YPE112M4，F(xiàn)WA107-YPE132M4，F(xiàn)WA107-YPE160M4，F(xiàn)WA107-YPE180M4，F(xiàn)WA107-YPE200M4，F(xiàn)WA107-YPE225M4，F(xiàn)WA107-YPE80M4，F(xiàn)WA107-YPE90M4，F(xiàn)WA107-YS100M4，F(xiàn)WA107-YS112M4，F(xiàn)WA107-YS132M4，F(xiàn)WA107-YS160M4，F(xiàn)WA107-YS180M4，F(xiàn)WA107-YS200M4，F(xiàn)WA107-YS225M4，F(xiàn)WA107-YS80M4，F(xiàn)WA107-YS90M4，F(xiàn)WA107-YVB100M4，F(xiàn)WA107-YVB112M4，F(xiàn)WA107-YVB132M4，F(xiàn)WA107-YVB160M4，F(xiàn)WA107-YVB180M4，F(xiàn)WA107-YVB200M4，F(xiàn)WA107-YVB225M4，F(xiàn)WA107-YVB80M4，F(xiàn)WA107-YVB90M4，F(xiàn)WA107-YVP100M4，F(xiàn)WA107-YVP112M4，F(xiàn)WA107-YVP132M4，F(xiàn)WA107-YVP160M4，F(xiàn)WA107-YVP180M4，F(xiàn)WA107-YVP200M4，F(xiàn)WA107-YVP225M4，F(xiàn)WA107-YVP80M4，F(xiàn)WA107-YVP90M4，F(xiàn)WA107-YVPEJ100M4，F(xiàn)WA107-YVPEJ112M4，F(xiàn)WA107-YVPEJ132M4，F(xiàn)WA107-YVPEJ160M4，F(xiàn)WA107-YVPEJ180M4，F(xiàn)WA107-YVPEJ200M4，F(xiàn)WA107-YVPEJ225M4，F(xiàn)WA107-YVPEJ80M4，F(xiàn)WA107-YVPEJ90M4，F(xiàn)A109-Y1.5KW，F(xiàn)A109-Y100M4，F(xiàn)A109-Y112M4，F(xiàn)A109-Y11KW，F(xiàn)A109-Y132M4，F(xiàn)A109-Y15KW，F(xiàn)A109-Y160M4，F(xiàn)A109-Y18.5KW，F(xiàn)A109-Y180M4，F(xiàn)A109-Y2.2KW，F(xiàn)A109-Y200M4，F(xiàn)A109-Y225M4，F(xiàn)A109-Y22KW，F(xiàn)A109-Y30KW，F(xiàn)A109-Y37KW，F(xiàn)A109-Y3KW，F(xiàn)A109-Y45KW，F(xiàn)A109-Y4KW，F(xiàn)A109-Y5.5KW，F(xiàn)A109-Y7.5KW，F(xiàn)A109-Y80M4，F(xiàn)A109-Y90M4，F(xiàn)A109-YB100M4，F(xiàn)A109-YB112M4，F(xiàn)A109-YB132M4，F(xiàn)A109-YB160M4，F(xiàn)A109-YB180M4，F(xiàn)A109-YB200M4，F(xiàn)A109-YB225M4，F(xiàn)A109-YB80M4，F(xiàn)A109-YB90M4，F(xiàn)A109-YDP100M4，F(xiàn)A109-YDP112M4，F(xiàn)A109-YDP132M4，F(xiàn)A109-YDP160M4，F(xiàn)A109-YDP180M4，F(xiàn)A109-YDP200M4，F(xiàn)A109-YDP225M4，F(xiàn)A109-YDP80M4，F(xiàn)A109-YDP90M4，F(xiàn)A109-YE100M4，F(xiàn)A109-YE112M4，F(xiàn)A109-YE132M4，F(xiàn)A109-YE160M4，F(xiàn)A109-YE180M4，F(xiàn)A109-YE200M4，F(xiàn)A109-YE225M4，F(xiàn)A109-YE80M4，F(xiàn)A109-YE90M4，F(xiàn)A109-YEJ100M4，F(xiàn)A109-YEJ112M4，F(xiàn)A109-YEJ132M4，F(xiàn)A109-YEJ160M4，F(xiàn)A109-YEJ180M4，F(xiàn)A109-YEJ200M4，F(xiàn)A109-YEJ225M4，F(xiàn)A109-YEJ80M4，F(xiàn)A109-YEJ90M4，F(xiàn)A109-YEJB100M4，F(xiàn)A109-YEJB112M4，F(xiàn)A109-YEJB132M4，F(xiàn)A109-YEJB160M4，F(xiàn)A109-YEJB180M4，F(xiàn)A109-YEJB200M4，F(xiàn)A109-YEJB225M4，F(xiàn)A109-YEJB80M4，F(xiàn)A109-YEJB90M4，F(xiàn)A109-YP100M4，F(xiàn)A109-YP112M4，F(xiàn)A109-YP132M4，F(xiàn)A109-YP160M4，F(xiàn)A109-YP180M4，F(xiàn)A109-YP200M4，F(xiàn)A109-YP225M4，F(xiàn)A109-YP80M4，F(xiàn)A109-YP90M4，F(xiàn)A109-YPB100M4，F(xiàn)A109-YPB112M4，F(xiàn)A109-YPB132M4，F(xiàn)A109-YPB160M4，F(xiàn)A109-YPB180M4，F(xiàn)A109-YPB200M4，F(xiàn)A109-YPB225M4，F(xiàn)A109-YPB80M4，F(xiàn)A109-YPB90M4，F(xiàn)A109-YPE100M4，F(xiàn)A109-YPE112M4，F(xiàn)A109-YPE132M4，F(xiàn)A109-YPE160M4，F(xiàn)A109-YPE180M4，F(xiàn)A109-YPE200M4，F(xiàn)A109-YPE225M4，F(xiàn)A109-YPE80M4，F(xiàn)A109-YPE90M4，F(xiàn)A109-YS100M4，F(xiàn)A109-YS112M4，F(xiàn)A109-YS132M4，F(xiàn)A109-YS160M4，F(xiàn)A109-YS180M4，F(xiàn)A109-YS200M4，F(xiàn)A109-YS225M4，F(xiàn)A109-YS80M4，F(xiàn)A109-YS90M4，F(xiàn)A109-YVB100M4，F(xiàn)A109-YVB112M4，F(xiàn)A109-YVB132M4，F(xiàn)A109-YVB160M4，F(xiàn)A109-YVB180M4，F(xiàn)A109-YVB200M4，F(xiàn)A109-YVB225M4，F(xiàn)A109-YVB80M4，F(xiàn)A109-YVB90M4，F(xiàn)A109-YVP100M4，F(xiàn)A109-YVP112M4，F(xiàn)A109-YVP132M4，F(xiàn)A109-YVP160M4，F(xiàn)A109-YVP180M4，F(xiàn)A109-YVP200M4，F(xiàn)A109-YVP225M4，F(xiàn)A109-YVP80M4，F(xiàn)A109-YVP90M4，F(xiàn)A109-YVPEJ100M4，F(xiàn)A109-YVPEJ112M4，F(xiàn)A109-YVPEJ132M4，F(xiàn)A109-YVPEJ160M4，F(xiàn)A109-YVPEJ180M4，F(xiàn)A109-YVPEJ200M4，F(xiàn)A109-YVPEJ225M4，F(xiàn)A109-YVPEJ80M4，F(xiàn)A109-YVPEJ90M4，F(xiàn)A107SF80，F(xiàn)A107SF90，F(xiàn)A107SF100，F(xiàn)A107SF112，F(xiàn)A107SF115，F(xiàn)A107SF140，F(xiàn)A107SF160，F(xiàn)A107SF190。

FA109減速器生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ttgylm.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F109減速機
