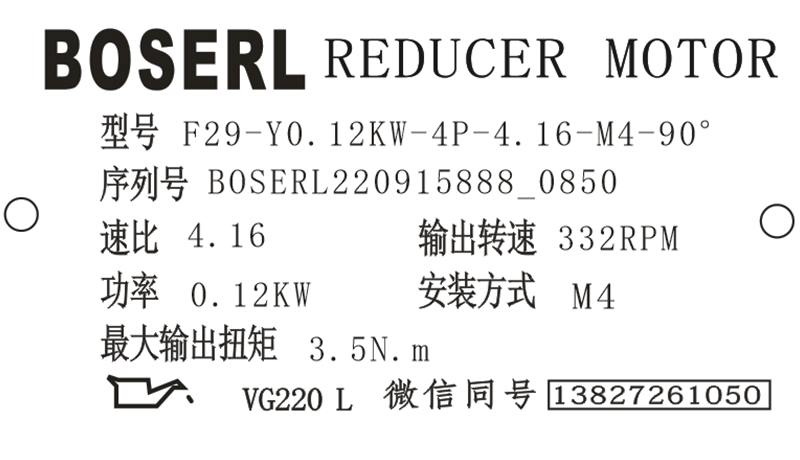

F29減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F29減速器選型樣本。

F29-Y0.12KW-4P-4.16-M4-90°

F：系列代號

29：減速機規格代號

Y：電機

0.12KW：電機功率

4P：電機級數

4.16：減速機傳動比

M4：減速機安裝位置

90°：接線盒位置

F29減速器上的圖標說明：下表列出安裝位置章節中所采用的圖標及其含義

F29減速器安裝所需工具以及材料：

F29減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近！同時還要檢查，注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。F29減速器在出廠時加注了相應油量的潤滑油。由于安裝位置的原因，從油位螺栓觀察，油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時，潤滑油加注油量和透氣閥的位置必須作相應的調整。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將F29減速器的安裝位置改變?yōu)镸5或M6，或者M(jìn)5、M6之間的安裝位置，請您咨詢BOSERL公司客戶服務部。若要將F29減速器改裝成M2或M3時，請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕，請您在F29減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須＜109Ω。電化學腐蝕可能發生在不同的金屬物質之間，如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片！還要通過電機上的接地螺栓對F29減速器箱體進行連接接地。F系列減速機

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件（墊片、間隔環）、輸入/輸出元件的緊固裝置、 潤滑油（F29減速器出廠已經自帶潤滑油）、用于緊固螺栓的密封膠（針對帶對中軸肩的輸入軸裝置AD/ZR），所有的標準部件均不是供貨范圍。

F29減速器故障售后服務統籌：

F29減速器異常、無規律的運轉噪音：軸承損壞，檢查潤滑油參見“F29減速器說明書的檢查/維護”章節，更換軸承；齒輪有損失，請向客戶服務部咨詢；潤滑油中有異物，檢查潤滑油參見“F29減速器說明書的檢查/維護”章節；傳動裝置停車，請向客戶服務部咨詢；齒輪減速電機

F29減速器潤滑油泄露：F29減速器密封面密封性能不良，擰緊F29減速器蓋上的螺釘并觀察F29減速器。如果潤滑油繼續泄露，請向客戶服務部咨詢；密封圈損壞，請向客戶服務部咨詢；F29減速器透氣閥失效，給F29減速器透氣參見“F29減速器說明書的安裝位置”章節。

F29減速器潤滑油從透氣閥處滲出：潤滑油太多，調節油量參見“F29減速器說明書的檢查/維護”章節；F29減速器安裝位置錯誤，正確安裝透氣閥參見“F29減速器說明書的安裝位置”章節，調節油位參見“F29減速器說明書的檢查/維護”章節。

F29減速器電機或輸入軸轉動，而輸出軸不轉：F29減速器中的軸輪轂聯接斷裂，將F29減速器或減速電機送來我司修理。

在磨合期（48小時的運轉時間內）油封可能出現短期內的滲油或油脂的現象。對F29減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障，請與BOSERL公司客戶服務部聯系。平行軸斜齒輪減速機

F29減速器型號：

F29-Y0.12KW，F(xiàn)29-Y0.18KW，F(xiàn)29-Y0.25KW，F(xiàn)29-Y0.37KW，F(xiàn)29-Y0.55KW，F(xiàn)29-Y0.75KW，F(xiàn)29-Y1.1KW，F(xiàn)29-Y1.5KW，F(xiàn)29-Y2.2KW，F(xiàn)29-Y3KW，F(xiàn)29-YB100M4，F(xiàn)29-YB63M4，F(xiàn)29-YB71M4，F(xiàn)29-YB80M4，F(xiàn)29-YB90M4，F(xiàn)29-YDP100M4，F(xiàn)29-YDP63M4，F(xiàn)29-YDP71M4，F(xiàn)29-YDP80M4，F(xiàn)29-YDP90M4，F(xiàn)29-YE100M4，F(xiàn)29-YE63M4，F(xiàn)29-YE71M4，F(xiàn)29-YE80M4，F(xiàn)29-YE90M4，F(xiàn)29-YEJ100M4，F(xiàn)29-YEJ63M4，F(xiàn)29-YEJ71M4，F(xiàn)29-YEJ80M4，F(xiàn)29-YEJ90M4，F(xiàn)29-YEJB100M4，F(xiàn)29-YEJB63M4，F(xiàn)29-YEJB71M4，F(xiàn)29-YEJB80M4，F(xiàn)29-YEJB90M4，F(xiàn)29-YP100M4，F(xiàn)29-YP63M4，F(xiàn)29-YP71M4，F(xiàn)29-YP80M4，F(xiàn)29-YP90M4，F(xiàn)29-YPB100M4，F(xiàn)29-YPB63M4，F(xiàn)29-YPB71M4，F(xiàn)29-YPB80M4，F(xiàn)29-YPB90M4，F(xiàn)29-YPE100M4，F(xiàn)29-YPE63M4，F(xiàn)29-YPE71M4，F(xiàn)29-YPE80M4，F(xiàn)29-YPE90M4，F(xiàn)29-YS100M4，F(xiàn)29-YS63M4，F(xiàn)29-YS71M4，F(xiàn)29-YS80M4，F(xiàn)29-YS90M4，F(xiàn)29-YVB100M4，F(xiàn)29-YVB63M4，F(xiàn)29-YVB71M4，F(xiàn)29-YVB80M4，F(xiàn)29-YVB90M4，F(xiàn)29-YVP100M4，F(xiàn)29-YVP63M4，F(xiàn)29-YVP71M4，F(xiàn)29-YVP80M4，F(xiàn)29-YVP90M4，F(xiàn)29-YVPEJ100M4，F(xiàn)29-YVPEJ63M4，F(xiàn)29-YVPEJ71M4，F(xiàn)29-YVPEJ80M4，F(xiàn)29-YVPEJ90M4，F(xiàn)29-Y63M4，F(xiàn)29-Y71M4，F(xiàn)29-Y80M4，F(xiàn)29-Y90M4，F(xiàn)29-Y100M4，JCF27-Y0.12KW，JCF27-Y0.18KW，JCF27-Y0.25KW，JCF27-Y0.37KW，JCF27-Y0.55KW，JCF27-Y0.75KW，JCF27-Y1.1KW，JCF27-Y1.5KW，JCF27-Y2.2KW，JCF27-Y3KW，JCF27-YB100M4，JCF27-YB63M4，JCF27-YB71M4，JCF27-YB80M4，JCF27-YB90M4，JCF27-YDP100M4，JCF27-YDP63M4，JCF27-YDP71M4，JCF27-YDP80M4，JCF27-YDP90M4，JCF27-YE100M4，JCF27-YE63M4，JCF27-YE71M4，JCF27-YE80M4，JCF27-YE90M4，JCF27-YEJ100M4，JCF27-YEJ63M4，JCF27-YEJ71M4，JCF27-YEJ80M4，JCF27-YEJ90M4，JCF27-YEJB100M4，JCF27-YEJB63M4，JCF27-YEJB71M4，JCF27-YEJB80M4，JCF27-YEJB90M4，JCF27-YP100M4，JCF27-YP63M4，JCF27-YP71M4，JCF27-YP80M4，JCF27-YP90M4，JCF27-YPB100M4，JCF27-YPB63M4，JCF27-YPB71M4，JCF27-YPB80M4，JCF27-YPB90M4，JCF27-YPE100M4，JCF27-YPE63M4，JCF27-YPE71M4，JCF27-YPE80M4，JCF27-YPE90M4，JCF27-YS100M4，JCF27-YS63M4，JCF27-YS71M4，JCF27-YS80M4，JCF27-YS90M4，JCF27-YVB100M4，JCF27-YVB63M4，JCF27-YVB71M4，JCF27-YVB80M4，JCF27-YVB90M4，JCF27-YVP100M4，JCF27-YVP63M4，JCF27-YVP71M4，JCF27-YVP80M4，JCF27-YVP90M4，JCF27-YVPEJ100M4，JCF27-YVPEJ63M4，JCF27-YVPEJ71M4，JCF27-YVPEJ80M4，JCF27-YVPEJ90M4，JCF27-Y63M4，JCF27-Y71M4，JCF27-Y80M4，JCF27-Y90M4，JCF27-Y100M4，XDF27-Y0.12KW，XDF27-Y0.18KW，XDF27-Y0.25KW，XDF27-Y0.37KW，XDF27-Y0.55KW，XDF27-Y0.75KW，XDF27-Y1.1KW，XDF27-Y1.5KW，XDF27-Y2.2KW，XDF27-Y3KW，XDF27-YB100M4，XDF27-YB63M4，XDF27-YB71M4，XDF27-YB80M4，XDF27-YB90M4，XDF27-YDP100M4，XDF27-YDP63M4，XDF27-YDP71M4，XDF27-YDP80M4，XDF27-YDP90M4，XDF27-YE100M4，XDF27-YE63M4，XDF27-YE71M4，XDF27-YE80M4，XDF27-YE90M4，XDF27-YEJ100M4，XDF27-YEJ63M4，XDF27-YEJ71M4，XDF27-YEJ80M4，XDF27-YEJ90M4，XDF27-YEJB100M4，XDF27-YEJB63M4，XDF27-YEJB71M4，XDF27-YEJB80M4，XDF27-YEJB90M4，XDF27-YP100M4，XDF27-YP63M4，XDF27-YP71M4，XDF27-YP80M4，XDF27-YP90M4，XDF27-YPB100M4，XDF27-YPB63M4，XDF27-YPB71M4，XDF27-YPB80M4，XDF27-YPB90M4，XDF27-YPE100M4，XDF27-YPE63M4，XDF27-YPE71M4，XDF27-YPE80M4，XDF27-YPE90M4，XDF27-YS100M4，XDF27-YS63M4，XDF27-YS71M4，XDF27-YS80M4，XDF27-YS90M4，XDF27-YVB100M4，XDF27-YVB63M4，XDF27-YVB71M4，XDF27-YVB80M4，XDF27-YVB90M4，XDF27-YVP100M4，XDF27-YVP63M4，XDF27-YVP71M4，XDF27-YVP80M4，XDF27-YVP90M4，XDF27-YVPEJ100M4，XDF27-YVPEJ63M4，XDF27-YVPEJ71M4，XDF27-YVPEJ80M4，XDF27-YVPEJ90M4，XDF27-Y63M4，XDF27-Y71M4，XDF27-Y80M4，XDF27-Y90M4，XDF27-Y100M4，F(xiàn)W27-Y0.12KW，F(xiàn)W27-Y0.18KW，F(xiàn)W27-Y0.25KW，F(xiàn)W27-Y0.37KW，F(xiàn)W27-Y0.55KW，F(xiàn)W27-Y0.75KW，F(xiàn)W27-Y1.1KW，F(xiàn)W27-Y1.5KW，F(xiàn)W27-Y2.2KW，F(xiàn)W27-Y3KW，F(xiàn)W27-YB100M4，F(xiàn)W27-YB63M4，F(xiàn)W27-YB71M4，F(xiàn)W27-YB80M4，F(xiàn)W27-YB90M4，F(xiàn)W27-YDP100M4，F(xiàn)W27-YDP63M4，F(xiàn)W27-YDP71M4，F(xiàn)W27-YDP80M4，F(xiàn)W27-YDP90M4，F(xiàn)W27-YE100M4，F(xiàn)W27-YE63M4，F(xiàn)W27-YE71M4，F(xiàn)W27-YE80M4，F(xiàn)W27-YE90M4，F(xiàn)W27-YEJ100M4，F(xiàn)W27-YEJ63M4，F(xiàn)W27-YEJ71M4，F(xiàn)W27-YEJ80M4，F(xiàn)W27-YEJ90M4，F(xiàn)W27-YEJB100M4，F(xiàn)W27-YEJB63M4，F(xiàn)W27-YEJB71M4，F(xiàn)W27-YEJB80M4，F(xiàn)W27-YEJB90M4，F(xiàn)W27-YP100M4，F(xiàn)W27-YP63M4，F(xiàn)W27-YP71M4，F(xiàn)W27-YP80M4，F(xiàn)W27-YP90M4，F(xiàn)W27-YPB100M4，F(xiàn)W27-YPB63M4，F(xiàn)W27-YPB71M4，F(xiàn)W27-YPB80M4，F(xiàn)W27-YPB90M4，F(xiàn)W27-YPE100M4，F(xiàn)W27-YPE63M4，F(xiàn)W27-YPE71M4，F(xiàn)W27-YPE80M4，F(xiàn)W27-YPE90M4，F(xiàn)W27-YS100M4，F(xiàn)W27-YS63M4，F(xiàn)W27-YS71M4，F(xiàn)W27-YS80M4，F(xiàn)W27-YS90M4，F(xiàn)W27-YVB100M4，F(xiàn)W27-YVB63M4，F(xiàn)W27-YVB71M4，F(xiàn)W27-YVB80M4，F(xiàn)W27-YVB90M4，F(xiàn)W27-YVP100M4，F(xiàn)W27-YVP63M4，F(xiàn)W27-YVP71M4，F(xiàn)W27-YVP80M4，F(xiàn)W27-YVP90M4，F(xiàn)W27-YVPEJ100M4，F(xiàn)W27-YVPEJ63M4，F(xiàn)W27-YVPEJ71M4，F(xiàn)W27-YVPEJ80M4，F(xiàn)W27-YVPEJ90M4，F(xiàn)W27-Y63M4，F(xiàn)W27-Y71M4，F(xiàn)W27-Y80M4，F(xiàn)W27-Y90M4，F(xiàn)W27-Y100M4，YQF27-Y0.12KW，YQF27-Y0.18KW，YQF27-Y0.25KW，YQF27-Y0.37KW，YQF27-Y0.55KW，YQF27-Y0.75KW，YQF27-Y1.1KW，YQF27-Y1.5KW，YQF27-Y2.2KW，YQF27-Y3KW，YQF27-YB100M4，YQF27-YB63M4，YQF27-YB71M4，YQF27-YB80M4，YQF27-YB90M4，YQF27-YDP100M4，YQF27-YDP63M4，YQF27-YDP71M4，YQF27-YDP80M4，YQF27-YDP90M4，YQF27-YE100M4，YQF27-YE63M4，YQF27-YE71M4，YQF27-YE80M4，YQF27-YE90M4，YQF27-YEJ100M4，YQF27-YEJ63M4，YQF27-YEJ71M4，YQF27-YEJ80M4，YQF27-YEJ90M4，YQF27-YEJB100M4，YQF27-YEJB63M4，YQF27-YEJB71M4，YQF27-YEJB80M4，YQF27-YEJB90M4，YQF27-YP100M4，YQF27-YP63M4，YQF27-YP71M4，YQF27-YP80M4，YQF27-YP90M4，YQF27-YPB100M4，YQF27-YPB63M4，YQF27-YPB71M4，YQF27-YPB80M4，YQF27-YPB90M4，YQF27-YPE100M4，YQF27-YPE63M4，YQF27-YPE71M4，YQF27-YPE80M4，YQF27-YPE90M4，YQF27-YS100M4，YQF27-YS63M4，YQF27-YS71M4，YQF27-YS80M4，YQF27-YS90M4，YQF27-YVB100M4，YQF27-YVB63M4，YQF27-YVB71M4，YQF27-YVB80M4，YQF27-YVB90M4，YQF27-YVP100M4，YQF27-YVP63M4，YQF27-YVP71M4，YQF27-YVP80M4，YQF27-YVP90M4，YQF27-YVPEJ100M4，YQF27-YVPEJ63M4，YQF27-YVPEJ71M4，YQF27-YVPEJ80M4，YQF27-YVPEJ90M4，YQF27-Y63M4，YQF27-Y71M4，YQF27-Y80M4，YQF27-Y90M4，YQF27-Y100M4，F(xiàn)27SF80，F(xiàn)27SF90，F(xiàn)27SF100，F(xiàn)27SF112，F(xiàn)27SF115，F(xiàn)27SF140，F(xiàn)27SF160，F(xiàn)27SF190。
