KA79減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA79減速器選型樣本。

KA79-BVB-2.2KW-4P-78.07-M3-270°

KA：系列代號

79：減速機規格代號

BVB：電機

2.2KW：電機功率

4P：電機級數

78.07：減速機傳動比

M3：減速機安裝位置

270°：接線盒位置

KA79減速器逆止器安裝：

KA79減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。齒輪減速電機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。

KA79減速器潤滑油更換：

由于KA79減速器發熱或KA79減速器油溫過高可能引起燙傷，對KA79減速器進行操作前先冷卻，KA79減速器必須保持一定溫度以避免由于油溫過低引起流動性差影響正常排放。直角減速機

通過放油螺栓和透氣閥進行換油：將一個容器置于放油螺栓下方；卸下油位檢查螺栓、透氣閥與放油螺栓；將潤滑油完全排放；重新擰入放油螺栓；通過透氣閥注入新的同類潤滑油（否則必須與客戶服務聯系），禁止混用不同種類的合成潤滑油；重新擰入油位檢查螺栓與透氣閥。

通過安裝蓋換油：擰開安裝蓋的螺絲，打開安裝蓋提取少許潤滑油，檢查潤滑油的狀況，將潤滑油完全排放，裝上安裝蓋。

通過密封螺栓換油：通過密封孔將潤滑油完全排放；通過檢查孔加入新的同類潤滑油（否則必須與客戶服務部聯系），禁止混用不同種類的合成潤滑油；檢查油位；重新擰緊密封螺栓。空心軸減速機

KA79減速器電機型號：

KWA77-Y0.25KWA，KWA77-Y0.37KWA，KWA77-Y0.55KWA，KWA77-Y0.75KWA，KWA77-Y1.1KWA，KWA77-Y1.5KWA，KWA77-Y100M4，KWA77-Y112M4，KWA77-Y11KWA，KWA77-Y132M4，KWA77-Y160M4，KWA77-Y2.2KWA，KWA77-Y3KWA，KWA77-Y4KWA，KWA77-Y5.5KWA，KWA77-Y7.5KWA，KWA77-Y71M4，KWA77-Y80M4，KWA77-Y90M4，KWA77-YB100M4，KWA77-YB112M4，KWA77-YB132M4，KWA77-YB160M4，KWA77-YB71M4，KWA77-YB80M4，KWA77-YB90M4，KWA77-YDP100M4，KWA77-YDP112M4，KWA77-YDP132M4，KWA77-YDP160M4，KWA77-YDP71M4，KWA77-YDP80M4，KWA77-YDP90M4，KWA77-YE100M4，KWA77-YE112M4，KWA77-YE132M4，KWA77-YE160M4，KWA77-YE71M4，KWA77-YE80M4，KWA77-YE90M4，KWA77-YEJ100M4，KWA77-YEJ112M4，KWA77-YEJ132M4，KWA77-YEJ160M4，KWA77-YEJ71M4，KWA77-YEJ80M4，KWA77-YEJ90M4，KWA77-YEJB100M4，KWA77-YEJB112M4，KWA77-YEJB132M4，KWA77-YEJB160M4，KWA77-YEJB71M4，KWA77-YEJB80M4，KWA77-YEJB90M4，KWA77-YP100M4，KWA77-YP112M4，KWA77-YP132M4，KWA77-YP160M4，KWA77-YP71M4，KWA77-YP80M4，KWA77-YP90M4，KWA77-YPB100M4，KWA77-YPB112M4，KWA77-YPB132M4，KWA77-YPB160M4，KWA77-YPB71M4，KWA77-YPB80M4，KWA77-YPB90M4，KWA77-YPE100M4，KWA77-YPE112M4，KWA77-YPE132M4，KWA77-YPE160M4，KWA77-YPE71M4，KWA77-YPE80M4，KWA77-YPE90M4，KWA77-YS100M4，KWA77-YS112M4，KWA77-YS132M4，KWA77-YS160M4，KWA77-YS71M4，KWA77-YS80M4，KWA77-YS90M4，KWA77-YVB100M4，KWA77-YVB112M4，KWA77-YVB132M4，KWA77-YVB160M4，KWA77-YVB71M4，KWA77-YVB80M4，KWA77-YVB90M4，KWA77-YVP100M4，KWA77-YVP112M4，KWA77-YVP132M4，KWA77-YVP160M4，KWA77-YVP71M4，KWA77-YVP80M4，KWA77-YVP90M4，KWA77-YVPEJ100M4，KWA77-YVPEJ112M4，KWA77-YVPEJ132M4，KWA77-YVPEJ160M4，KWA77-YVPEJ71M4，KWA77-YVPEJ80M4，KWA77-YVPEJ90M4，XDKA77-Y0.25KWA，XDKA77-Y0.37KWA，XDKA77-Y0.55KWA，XDKA77-Y0.75KWA，XDKA77-Y1.1KWA，XDKA77-Y1.5KWA，XDKA77-Y100M4，XDKA77-Y112M4，XDKA77-Y11KWA，XDKA77-Y132M4，XDKA77-Y160M4，XDKA77-Y2.2KWA，XDKA77-Y3KWA，XDKA77-Y4KWA，XDKA77-Y5.5KWA，XDKA77-Y7.5KWA，XDKA77-Y71M4，XDKA77-Y80M4，XDKA77-Y90M4，XDKA77-YB100M4，XDKA77-YB112M4，XDKA77-YB132M4，XDKA77-YB160M4，XDKA77-YB71M4，XDKA77-YB80M4，XDKA77-YB90M4，XDKA77-YDP100M4，XDKA77-YDP112M4，XDKA77-YDP132M4，XDKA77-YDP160M4，XDKA77-YDP71M4，XDKA77-YDP80M4，XDKA77-YDP90M4，XDKA77-YE100M4，XDKA77-YE112M4，XDKA77-YE132M4，XDKA77-YE160M4，XDKA77-YE71M4，XDKA77-YE80M4，XDKA77-YE90M4，XDKA77-YEJ100M4，XDKA77-YEJ112M4，XDKA77-YEJ132M4，XDKA77-YEJ160M4，XDKA77-YEJ71M4，XDKA77-YEJ80M4，XDKA77-YEJ90M4，XDKA77-YEJB100M4，XDKA77-YEJB112M4，XDKA77-YEJB132M4，XDKA77-YEJB160M4，XDKA77-YEJB71M4，XDKA77-YEJB80M4，XDKA77-YEJB90M4，XDKA77-YP100M4，XDKA77-YP112M4，XDKA77-YP132M4，XDKA77-YP160M4，XDKA77-YP71M4，XDKA77-YP80M4，XDKA77-YP90M4，XDKA77-YPB100M4，XDKA77-YPB112M4，XDKA77-YPB132M4，XDKA77-YPB160M4，XDKA77-YPB71M4，XDKA77-YPB80M4，XDKA77-YPB90M4，XDKA77-YPE100M4，XDKA77-YPE112M4，XDKA77-YPE132M4，XDKA77-YPE160M4，XDKA77-YPE71M4，XDKA77-YPE80M4，XDKA77-YPE90M4，XDKA77-YS100M4，XDKA77-YS112M4，XDKA77-YS132M4，XDKA77-YS160M4，XDKA77-YS71M4，XDKA77-YS80M4，XDKA77-YS90M4，XDKA77-YVB100M4，XDKA77-YVB112M4，XDKA77-YVB132M4，XDKA77-YVB160M4，XDKA77-YVB71M4，XDKA77-YVB80M4，XDKA77-YVB90M4，XDKA77-YVP100M4，XDKA77-YVP112M4，XDKA77-YVP132M4，XDKA77-YVP160M4，XDKA77-YVP71M4，XDKA77-YVP80M4，XDKA77-YVP90M4，XDKA77-YVPEJ100M4，XDKA77-YVPEJ112M4，XDKA77-YVPEJ132M4，XDKA77-YVPEJ160M4，XDKA77-YVPEJ71M4，XDKA77-YVPEJ80M4，XDKA77-YVPEJ90M4，YQKA77-Y0.25KWA，YQKA77-Y0.37KWA，YQKA77-Y0.55KWA，YQKA77-Y0.75KWA，YQKA77-Y1.1KWA，YQKA77-Y1.5KWA，YQKA77-Y100M4，YQKA77-Y112M4，YQKA77-Y11KWA，YQKA77-Y132M4，YQKA77-Y160M4，YQKA77-Y2.2KWA，YQKA77-Y3KWA，YQKA77-Y4KWA，YQKA77-Y5.5KWA，YQKA77-Y7.5KWA，YQKA77-Y71M4，YQKA77-Y80M4，YQKA77-Y90M4，YQKA77-YB100M4，YQKA77-YB112M4，YQKA77-YB132M4，YQKA77-YB160M4，YQKA77-YB71M4，YQKA77-YB80M4，YQKA77-YB90M4，YQKA77-YDP100M4，YQKA77-YDP112M4，YQKA77-YDP132M4，YQKA77-YDP160M4，YQKA77-YDP71M4，YQKA77-YDP80M4，YQKA77-YDP90M4，YQKA77-YE100M4，YQKA77-YE112M4，YQKA77-YE132M4，YQKA77-YE160M4，YQKA77-YE71M4，YQKA77-YE80M4，YQKA77-YE90M4，YQKA77-YEJ100M4，YQKA77-YEJ112M4，YQKA77-YEJ132M4，YQKA77-YEJ160M4，YQKA77-YEJ71M4，YQKA77-YEJ80M4，YQKA77-YEJ90M4，YQKA77-YEJB100M4，YQKA77-YEJB112M4，YQKA77-YEJB132M4，YQKA77-YEJB160M4，YQKA77-YEJB71M4，YQKA77-YEJB80M4，YQKA77-YEJB90M4，YQKA77-YP100M4，YQKA77-YP112M4，YQKA77-YP132M4，YQKA77-YP160M4，YQKA77-YP71M4，YQKA77-YP80M4，YQKA77-YP90M4，YQKA77-YPB100M4，YQKA77-YPB112M4，YQKA77-YPB132M4，YQKA77-YPB160M4，YQKA77-YPB71M4，YQKA77-YPB80M4，YQKA77-YPB90M4，YQKA77-YPE100M4，YQKA77-YPE112M4，YQKA77-YPE132M4，YQKA77-YPE160M4，YQKA77-YPE71M4，YQKA77-YPE80M4，YQKA77-YPE90M4，YQKA77-YS100M4，YQKA77-YS112M4，YQKA77-YS132M4，YQKA77-YS160M4，YQKA77-YS71M4，YQKA77-YS80M4，YQKA77-YS90M4，YQKA77-YVB100M4，YQKA77-YVB112M4，YQKA77-YVB132M4，YQKA77-YVB160M4，YQKA77-YVB71M4，YQKA77-YVB80M4，YQKA77-YVB90M4，YQKA77-YVP100M4，YQKA77-YVP112M4，YQKA77-YVP132M4，YQKA77-YVP160M4，YQKA77-YVP71M4，YQKA77-YVP80M4，YQKA77-YVP90M4，YQKA77-YVPEJ100M4，YQKA77-YVPEJ112M4，YQKA77-YVPEJ132M4，YQKA77-YVPEJ160M4，YQKA77-YVPEJ71M4，YQKA77-YVPEJ80M4，YQKA77-YVPEJ90M4，JCKA77-Y0.25KWA，JCKA77-Y0.37KWA，JCKA77-Y0.55KWA，JCKA77-Y0.75KWA，JCKA77-Y1.1KWA，JCKA77-Y1.5KWA，JCKA77-Y100M4，JCKA77-Y112M4，JCKA77-Y11KWA，JCKA77-Y132M4，JCKA77-Y160M4，JCKA77-Y2.2KWA，JCKA77-Y3KWA，JCKA77-Y4KWA，JCKA77-Y5.5KWA，JCKA77-Y7.5KWA，JCKA77-Y71M4，JCKA77-Y80M4，JCKA77-Y90M4，JCKA77-YB100M4，JCKA77-YB112M4，JCKA77-YB132M4，JCKA77-YB160M4，JCKA77-YB71M4，JCKA77-YB80M4，JCKA77-YB90M4，JCKA77-YDP100M4，JCKA77-YDP112M4，JCKA77-YDP132M4，JCKA77-YDP160M4，JCKA77-YDP71M4，JCKA77-YDP80M4，JCKA77-YDP90M4，JCKA77-YE100M4，JCKA77-YE112M4，JCKA77-YE132M4，JCKA77-YE160M4，JCKA77-YE71M4，JCKA77-YE80M4，JCKA77-YE90M4，JCKA77-YEJ100M4，JCKA77-YEJ112M4，JCKA77-YEJ132M4，JCKA77-YEJ160M4，JCKA77-YEJ71M4，JCKA77-YEJ80M4，JCKA77-YEJ90M4，JCKA77-YEJB100M4，JCKA77-YEJB112M4，JCKA77-YEJB132M4，JCKA77-YEJB160M4，JCKA77-YEJB71M4，JCKA77-YEJB80M4，JCKA77-YEJB90M4，JCKA77-YP100M4，JCKA77-YP112M4，JCKA77-YP132M4，JCKA77-YP160M4，JCKA77-YP71M4，JCKA77-YP80M4，JCKA77-YP90M4，JCKA77-YPB100M4，JCKA77-YPB112M4，JCKA77-YPB132M4，JCKA77-YPB160M4，JCKA77-YPB71M4，JCKA77-YPB80M4，JCKA77-YPB90M4，JCKA77-YPE100M4，JCKA77-YPE112M4，JCKA77-YPE132M4，JCKA77-YPE160M4，JCKA77-YPE71M4，JCKA77-YPE80M4，JCKA77-YPE90M4，JCKA77-YS100M4，JCKA77-YS112M4，JCKA77-YS132M4，JCKA77-YS160M4，JCKA77-YS71M4，JCKA77-YS80M4，JCKA77-YS90M4，JCKA77-YVB100M4，JCKA77-YVB112M4，JCKA77-YVB132M4，JCKA77-YVB160M4，JCKA77-YVB71M4，JCKA77-YVB80M4，JCKA77-YVB90M4，JCKA77-YVP100M4，JCKA77-YVP112M4，JCKA77-YVP132M4，JCKA77-YVP160M4，JCKA77-YVP71M4，JCKA77-YVP80M4，JCKA77-YVP90M4，JCKA77-YVPEJ100M4，JCKA77-YVPEJ112M4，JCKA77-YVPEJ132M4，JCKA77-YVPEJ160M4，JCKA77-YVPEJ71M4，JCKA77-YVPEJ80M4，JCKA77-YVPEJ90M4，KA79-Y0.25KWA，KA79-Y0.37KWA，KA79-Y0.55KWA，KA79-Y0.75KWA，KA79-Y1.1KWA，KA79-Y1.5KWA，KA79-Y100M4，KA79-Y112M4，KA79-Y11KWA，KA79-Y132M4，KA79-Y160M4，KA79-Y2.2KWA，KA79-Y3KWA，KA79-Y4KWA，KA79-Y5.5KWA，KA79-Y7.5KWA，KA79-Y71M4，KA79-Y80M4，KA79-Y90M4，KA79-YB100M4，KA79-YB112M4，KA79-YB132M4，KA79-YB160M4，KA79-YB71M4，KA79-YB80M4，KA79-YB90M4，KA79-YDP100M4，KA79-YDP112M4，KA79-YDP132M4，KA79-YDP160M4，KA79-YDP71M4，KA79-YDP80M4，KA79-YDP90M4，KA79-YE100M4，KA79-YE112M4，KA79-YE132M4，KA79-YE160M4，KA79-YE71M4，KA79-YE80M4，KA79-YE90M4，KA79-YEJ100M4，KA79-YEJ112M4，KA79-YEJ132M4，KA79-YEJ160M4，KA79-YEJ71M4，KA79-YEJ80M4，KA79-YEJ90M4，KA79-YEJB100M4，KA79-YEJB112M4，KA79-YEJB132M4，KA79-YEJB160M4，KA79-YEJB71M4，KA79-YEJB80M4，KA79-YEJB90M4，KA79-YP100M4，KA79-YP112M4，KA79-YP132M4，KA79-YP160M4，KA79-YP71M4，KA79-YP80M4，KA79-YP90M4，KA79-YPB100M4，KA79-YPB112M4，KA79-YPB132M4，KA79-YPB160M4，KA79-YPB71M4，KA79-YPB80M4，KA79-YPB90M4，KA79-YPE100M4，KA79-YPE112M4，KA79-YPE132M4，KA79-YPE160M4，KA79-YPE71M4，KA79-YPE80M4，KA79-YPE90M4，KA79-YS100M4，KA79-YS112M4，KA79-YS132M4，KA79-YS160M4，KA79-YS71M4，KA79-YS80M4，KA79-YS90M4，KA79-YVB100M4，KA79-YVB112M4，KA79-YVB132M4，KA79-YVB160M4，KA79-YVB71M4，KA79-YVB80M4，KA79-YVB90M4，KA79-YVP100M4，KA79-YVP112M4，KA79-YVP132M4，KA79-YVP160M4，KA79-YVP71M4，KA79-YVP80M4，KA79-YVP90M4，KA79-YVPEJ100M4，KA79-YVPEJ112M4，KA79-YVPEJ132M4，KA79-YVPEJ160M4，KA79-YVPEJ71M4，KA79-YVPEJ80M4，KA79-YVPEJ90M4，KA77SF80，KA77SF90，KA77SF100，KA77SF112，KA77SF115，KA77SF140，KA77SF160，KA77SF190。

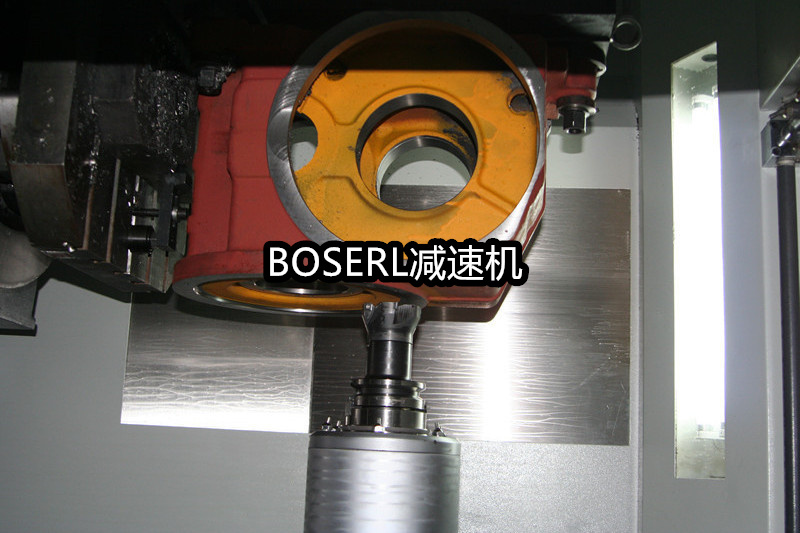

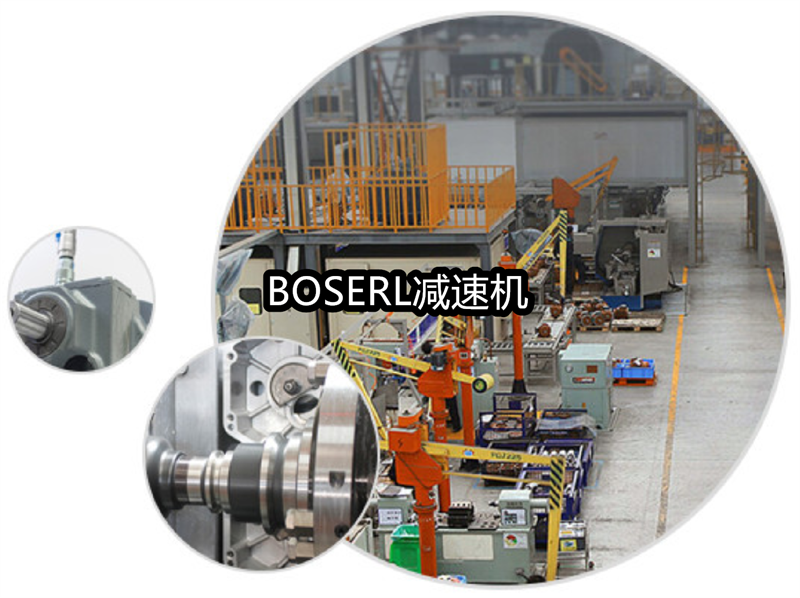

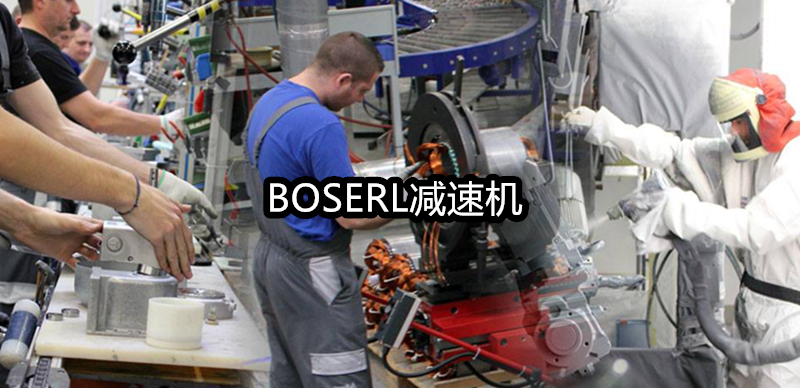

KA79減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ttgylm.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K79減速機
