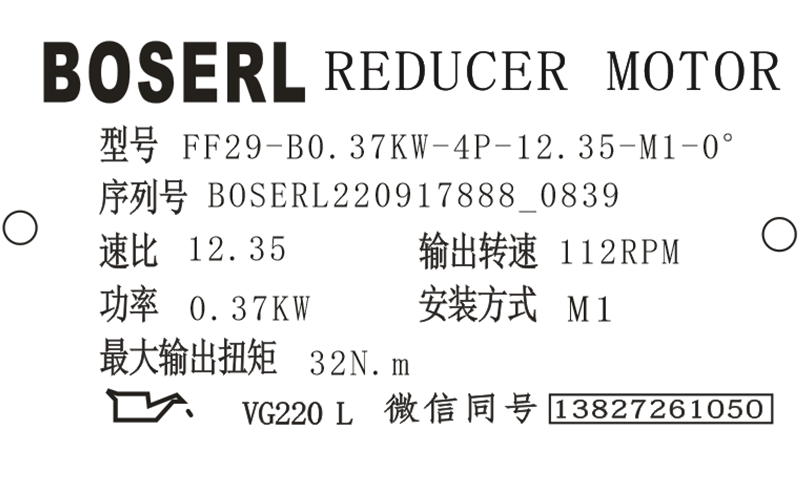

FF29減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF29減速器選型樣本。

FF29-B0.37KW-4P-12.35-M1-0°

FF：系列代號

29：減速機規格代號

B：電機

0.37KW：電機功率

4P：電機級數

12.35：減速機傳動比

M1：減速機安裝位置

0°：接線盒位置

FF29減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動FF29減速器前拆下透氣閥的運輸保險！平行軸斜齒輪減速機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

FF29減速器安裝操作的正確方法：

FF29減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列FF29減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的FF29減速器，啟動FF29減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。齒輪減速電機

FF29減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

FF29減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的FF29減速器選型樣本”）。

FF29減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。剎車電機減速機

FF29減速器型號：

FF29-Y0.12KW，FF29-Y0.18KW，FF29-Y0.25KW，FF29-Y0.37KW，FF29-Y0.55KW，FF29-Y0.75KW，FF29-Y1.1KW，FF29-Y1.5KW，FF29-Y2.2KW，FF29-Y3KW，FF29-YB100M4，FF29-YB63M4，FF29-YB71M4，FF29-YB80M4，FF29-YB90M4，FF29-YDP100M4，FF29-YDP63M4，FF29-YDP71M4，FF29-YDP80M4，FF29-YDP90M4，FF29-YE100M4，FF29-YE63M4，FF29-YE71M4，FF29-YE80M4，FF29-YE90M4，FF29-YEJ100M4，FF29-YEJ63M4，FF29-YEJ71M4，FF29-YEJ80M4，FF29-YEJ90M4，FF29-YEJB100M4，FF29-YEJB63M4，FF29-YEJB71M4，FF29-YEJB80M4，FF29-YEJB90M4，FF29-YP100M4，FF29-YP63M4，FF29-YP71M4，FF29-YP80M4，FF29-YP90M4，FF29-YPB100M4，FF29-YPB63M4，FF29-YPB71M4，FF29-YPB80M4，FF29-YPB90M4，FF29-YPE100M4，FF29-YPE63M4，FF29-YPE71M4，FF29-YPE80M4，FF29-YPE90M4，FF29-YS100M4，FF29-YS63M4，FF29-YS71M4，FF29-YS80M4，FF29-YS90M4，FF29-YVB100M4，FF29-YVB63M4，FF29-YVB71M4，FF29-YVB80M4，FF29-YVB90M4，FF29-YVP100M4，FF29-YVP63M4，FF29-YVP71M4，FF29-YVP80M4，FF29-YVP90M4，FF29-YVPEJ100M4，FF29-YVPEJ63M4，FF29-YVPEJ71M4，FF29-YVPEJ80M4，FF29-YVPEJ90M4，FF29-Y63M4，FF29-Y71M4，FF29-Y80M4，FF29-Y90M4，FF29-Y100M4，JCFF27-Y0.12KW，JCFF27-Y0.18KW，JCFF27-Y0.25KW，JCFF27-Y0.37KW，JCFF27-Y0.55KW，JCFF27-Y0.75KW，JCFF27-Y1.1KW，JCFF27-Y1.5KW，JCFF27-Y2.2KW，JCFF27-Y3KW，JCFF27-YB100M4，JCFF27-YB63M4，JCFF27-YB71M4，JCFF27-YB80M4，JCFF27-YB90M4，JCFF27-YDP100M4，JCFF27-YDP63M4，JCFF27-YDP71M4，JCFF27-YDP80M4，JCFF27-YDP90M4，JCFF27-YE100M4，JCFF27-YE63M4，JCFF27-YE71M4，JCFF27-YE80M4，JCFF27-YE90M4，JCFF27-YEJ100M4，JCFF27-YEJ63M4，JCFF27-YEJ71M4，JCFF27-YEJ80M4，JCFF27-YEJ90M4，JCFF27-YEJB100M4，JCFF27-YEJB63M4，JCFF27-YEJB71M4，JCFF27-YEJB80M4，JCFF27-YEJB90M4，JCFF27-YP100M4，JCFF27-YP63M4，JCFF27-YP71M4，JCFF27-YP80M4，JCFF27-YP90M4，JCFF27-YPB100M4，JCFF27-YPB63M4，JCFF27-YPB71M4，JCFF27-YPB80M4，JCFF27-YPB90M4，JCFF27-YPE100M4，JCFF27-YPE63M4，JCFF27-YPE71M4，JCFF27-YPE80M4，JCFF27-YPE90M4，JCFF27-YS100M4，JCFF27-YS63M4，JCFF27-YS71M4，JCFF27-YS80M4，JCFF27-YS90M4，JCFF27-YVB100M4，JCFF27-YVB63M4，JCFF27-YVB71M4，JCFF27-YVB80M4，JCFF27-YVB90M4，JCFF27-YVP100M4，JCFF27-YVP63M4，JCFF27-YVP71M4，JCFF27-YVP80M4，JCFF27-YVP90M4，JCFF27-YVPEJ100M4，JCFF27-YVPEJ63M4，JCFF27-YVPEJ71M4，JCFF27-YVPEJ80M4，JCFF27-YVPEJ90M4，JCFF27-Y63M4，JCFF27-Y71M4，JCFF27-Y80M4，JCFF27-Y90M4，JCFF27-Y100M4，XDFF27-Y0.12KW，XDFF27-Y0.18KW，XDFF27-Y0.25KW，XDFF27-Y0.37KW，XDFF27-Y0.55KW，XDFF27-Y0.75KW，XDFF27-Y1.1KW，XDFF27-Y1.5KW，XDFF27-Y2.2KW，XDFF27-Y3KW，XDFF27-YB100M4，XDFF27-YB63M4，XDFF27-YB71M4，XDFF27-YB80M4，XDFF27-YB90M4，XDFF27-YDP100M4，XDFF27-YDP63M4，XDFF27-YDP71M4，XDFF27-YDP80M4，XDFF27-YDP90M4，XDFF27-YE100M4，XDFF27-YE63M4，XDFF27-YE71M4，XDFF27-YE80M4，XDFF27-YE90M4，XDFF27-YEJ100M4，XDFF27-YEJ63M4，XDFF27-YEJ71M4，XDFF27-YEJ80M4，XDFF27-YEJ90M4，XDFF27-YEJB100M4，XDFF27-YEJB63M4，XDFF27-YEJB71M4，XDFF27-YEJB80M4，XDFF27-YEJB90M4，XDFF27-YP100M4，XDFF27-YP63M4，XDFF27-YP71M4，XDFF27-YP80M4，XDFF27-YP90M4，XDFF27-YPB100M4，XDFF27-YPB63M4，XDFF27-YPB71M4，XDFF27-YPB80M4，XDFF27-YPB90M4，XDFF27-YPE100M4，XDFF27-YPE63M4，XDFF27-YPE71M4，XDFF27-YPE80M4，XDFF27-YPE90M4，XDFF27-YS100M4，XDFF27-YS63M4，XDFF27-YS71M4，XDFF27-YS80M4，XDFF27-YS90M4，XDFF27-YVB100M4，XDFF27-YVB63M4，XDFF27-YVB71M4，XDFF27-YVB80M4，XDFF27-YVB90M4，XDFF27-YVP100M4，XDFF27-YVP63M4，XDFF27-YVP71M4，XDFF27-YVP80M4，XDFF27-YVP90M4，XDFF27-YVPEJ100M4，XDFF27-YVPEJ63M4，XDFF27-YVPEJ71M4，XDFF27-YVPEJ80M4，XDFF27-YVPEJ90M4，XDFF27-Y63M4，XDFF27-Y71M4，XDFF27-Y80M4，XDFF27-Y90M4，XDFF27-Y100M4，FWF27-Y0.12KW，FWF27-Y0.18KW，FWF27-Y0.25KW，FWF27-Y0.37KW，FWF27-Y0.55KW，FWF27-Y0.75KW，FWF27-Y1.1KW，FWF27-Y1.5KW，FWF27-Y2.2KW，FWF27-Y3KW，FWF27-YB100M4，FWF27-YB63M4，FWF27-YB71M4，FWF27-YB80M4，FWF27-YB90M4，FWF27-YDP100M4，FWF27-YDP63M4，FWF27-YDP71M4，FWF27-YDP80M4，FWF27-YDP90M4，FWF27-YE100M4，FWF27-YE63M4，FWF27-YE71M4，FWF27-YE80M4，FWF27-YE90M4，FWF27-YEJ100M4，FWF27-YEJ63M4，FWF27-YEJ71M4，FWF27-YEJ80M4，FWF27-YEJ90M4，FWF27-YEJB100M4，FWF27-YEJB63M4，FWF27-YEJB71M4，FWF27-YEJB80M4，FWF27-YEJB90M4，FWF27-YP100M4，FWF27-YP63M4，FWF27-YP71M4，FWF27-YP80M4，FWF27-YP90M4，FWF27-YPB100M4，FWF27-YPB63M4，FWF27-YPB71M4，FWF27-YPB80M4，FWF27-YPB90M4，FWF27-YPE100M4，FWF27-YPE63M4，FWF27-YPE71M4，FWF27-YPE80M4，FWF27-YPE90M4，FWF27-YS100M4，FWF27-YS63M4，FWF27-YS71M4，FWF27-YS80M4，FWF27-YS90M4，FWF27-YVB100M4，FWF27-YVB63M4，FWF27-YVB71M4，FWF27-YVB80M4，FWF27-YVB90M4，FWF27-YVP100M4，FWF27-YVP63M4，FWF27-YVP71M4，FWF27-YVP80M4，FWF27-YVP90M4，FWF27-YVPEJ100M4，FWF27-YVPEJ63M4，FWF27-YVPEJ71M4，FWF27-YVPEJ80M4，FWF27-YVPEJ90M4，FWF27-Y63M4，FWF27-Y71M4，FWF27-Y80M4，FWF27-Y90M4，FWF27-Y100M4，YQFF27-Y0.12KW，YQFF27-Y0.18KW，YQFF27-Y0.25KW，YQFF27-Y0.37KW，YQFF27-Y0.55KW，YQFF27-Y0.75KW，YQFF27-Y1.1KW，YQFF27-Y1.5KW，YQFF27-Y2.2KW，YQFF27-Y3KW，YQFF27-YB100M4，YQFF27-YB63M4，YQFF27-YB71M4，YQFF27-YB80M4，YQFF27-YB90M4，YQFF27-YDP100M4，YQFF27-YDP63M4，YQFF27-YDP71M4，YQFF27-YDP80M4，YQFF27-YDP90M4，YQFF27-YE100M4，YQFF27-YE63M4，YQFF27-YE71M4，YQFF27-YE80M4，YQFF27-YE90M4，YQFF27-YEJ100M4，YQFF27-YEJ63M4，YQFF27-YEJ71M4，YQFF27-YEJ80M4，YQFF27-YEJ90M4，YQFF27-YEJB100M4，YQFF27-YEJB63M4，YQFF27-YEJB71M4，YQFF27-YEJB80M4，YQFF27-YEJB90M4，YQFF27-YP100M4，YQFF27-YP63M4，YQFF27-YP71M4，YQFF27-YP80M4，YQFF27-YP90M4，YQFF27-YPB100M4，YQFF27-YPB63M4，YQFF27-YPB71M4，YQFF27-YPB80M4，YQFF27-YPB90M4，YQFF27-YPE100M4，YQFF27-YPE63M4，YQFF27-YPE71M4，YQFF27-YPE80M4，YQFF27-YPE90M4，YQFF27-YS100M4，YQFF27-YS63M4，YQFF27-YS71M4，YQFF27-YS80M4，YQFF27-YS90M4，YQFF27-YVB100M4，YQFF27-YVB63M4，YQFF27-YVB71M4，YQFF27-YVB80M4，YQFF27-YVB90M4，YQFF27-YVP100M4，YQFF27-YVP63M4，YQFF27-YVP71M4，YQFF27-YVP80M4，YQFF27-YVP90M4，YQFF27-YVPEJ100M4，YQFF27-YVPEJ63M4，YQFF27-YVPEJ71M4，YQFF27-YVPEJ80M4，YQFF27-YVPEJ90M4，YQFF27-Y63M4，YQFF27-Y71M4，YQFF27-Y80M4，YQFF27-Y90M4，YQFF27-Y100M4，FF27SF80，FF27SF90，FF27SF100，FF27SF112，FF27SF115，FF27SF140，FF27SF160，FF27SF190。

FF29減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ttgylm.com/product/list-ffxiliejiansuji-cn.html

推薦類似型號：F29減速機
