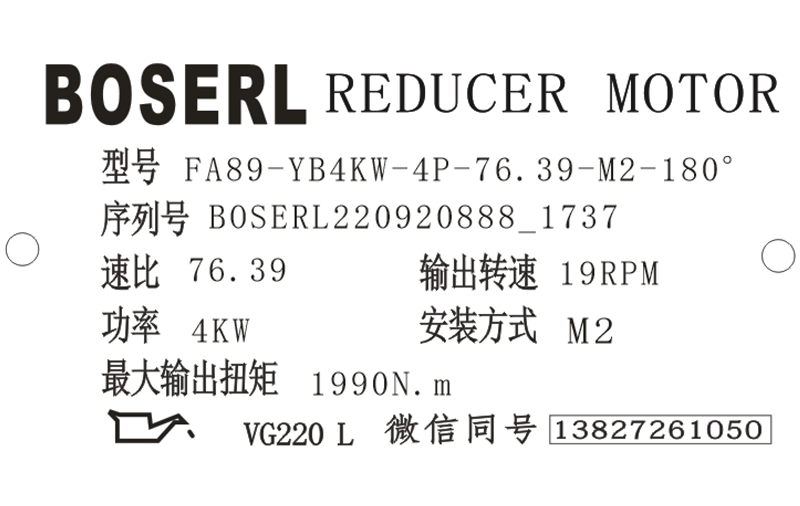

FA89減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FA89減速器選型樣本。

FA89-YB4KW-4P-76.39-M2-180°

FA：系列代號

89：減速機規格代號

YB：電機

4KW：電機功率

4P：電機級數

76.39：減速機傳動比

M2：減速機安裝位置

180°：接線盒位置

FA89減速器逆止器安裝：

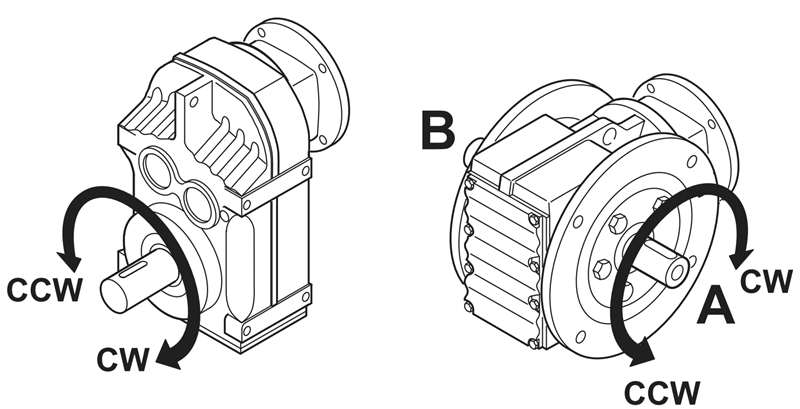

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。平行軸斜齒輪減速機

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

FA89減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。分體電機減速機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

FA89減速器潤滑油檢查：

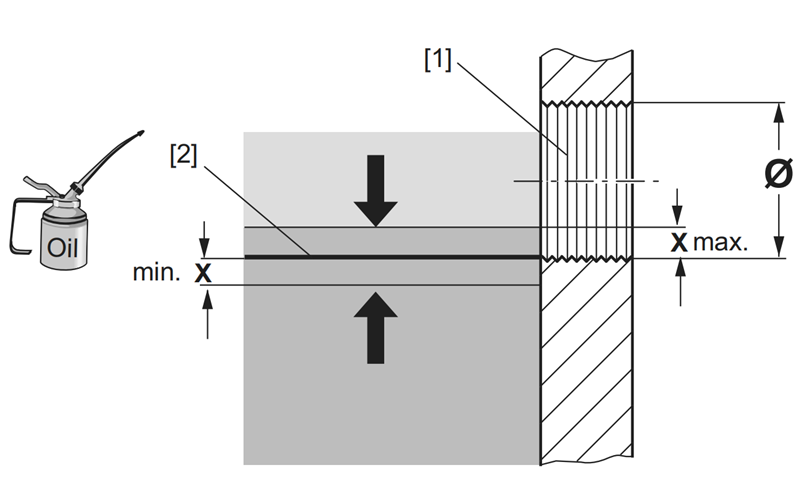

將一個容器置于油位檢查螺栓的下方；慢慢旋出油位檢查螺栓。由于最大許可注油高度超過了油位孔的下緣，因此在旋出螺栓時可能有少量油漏出；據下圖及相關表格檢查油位。

若油位過低則操作如下：旋入透氣螺栓；將同類潤滑油注入透氣孔直至油位檢查孔的下緣；重新旋入透氣螺塞。

重新旋入油位檢查螺栓，通過放油螺栓檢查油質。齒輪減速電機

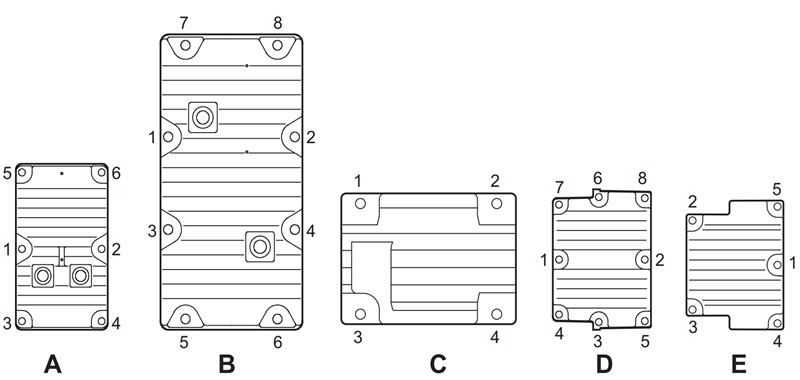

重新裝上安裝蓋，根據下表中的標稱擰緊扭矩按照圖中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。

FA89減速器型號：

FWA87-Y0.37KW，FWA87-Y0.55KW，FWA87-Y0.75KW，FWA87-Y1.1KW，FWA87-Y1.5KW，FWA87-Y100M4，FWA87-Y112M4，FWA87-Y11KW，FWA87-Y132M4，FWA87-Y15KW，FWA87-Y160M4，FWA87-Y18.5KW，FWA87-Y180M4，FWA87-Y2.2KW，FWA87-Y200M4，FWA87-Y22KW，FWA87-Y3KW，FWA87-Y4KW，FWA87-Y5.5KW，FWA87-Y7.5KW，FWA87-Y71M4，FWA87-Y80M4，FWA87-Y90M4，FWA87-YB100M4，FWA87-YB112M4，FWA87-YB132M4，FWA87-YB160M4，FWA87-YB180M4，FWA87-YB200M4，FWA87-YB71M4，FWA87-YB80M4，FWA87-YB90M4，FWA87-YDP100M4，FWA87-YDP112M4，FWA87-YDP132M4，FWA87-YDP160M4，FWA87-YDP180M4，FWA87-YDP200M4，FWA87-YDP71M4，FWA87-YDP80M4，FWA87-YDP90M4，FWA87-YE100M4，FWA87-YE112M4，FWA87-YE132M4，FWA87-YE160M4，FWA87-YE180M4，FWA87-YE200M4，FWA87-YE71M4，FWA87-YE80M4，FWA87-YE90M4，FWA87-YEJ100M4，FWA87-YEJ112M4，FWA87-YEJ132M4，FWA87-YEJ160M4，FWA87-YEJ180M4，FWA87-YEJ200M4，FWA87-YEJ71M4，FWA87-YEJ80M4，FWA87-YEJ90M4，FWA87-YEJB100M4，FWA87-YEJB112M4，FWA87-YEJB132M4，FWA87-YEJB160M4，FWA87-YEJB180M4，FWA87-YEJB200M4，FWA87-YEJB71M4，FWA87-YEJB80M4，FWA87-YEJB90M4，FWA87-YP100M4，FWA87-YP112M4，FWA87-YP132M4，FWA87-YP160M4，FWA87-YP180M4，FWA87-YP200M4，FWA87-YP71M4，FWA87-YP80M4，FWA87-YP90M4，FWA87-YPB100M4，FWA87-YPB112M4，FWA87-YPB132M4，FWA87-YPB160M4，FWA87-YPB180M4，FWA87-YPB200M4，FWA87-YPB71M4，FWA87-YPB80M4，FWA87-YPB90M4，FWA87-YPE100M4，FWA87-YPE112M4，FWA87-YPE132M4，FWA87-YPE160M4，FWA87-YPE180M4，FWA87-YPE200M4，FWA87-YPE71M4，FWA87-YPE80M4，FWA87-YPE90M4，FWA87-YS100M4，FWA87-YS112M4，FWA87-YS132M4，FWA87-YS160M4，FWA87-YS180M4，FWA87-YS200M4，FWA87-YS71M4，FWA87-YS80M4，FWA87-YS90M4，FWA87-YVB100M4，FWA87-YVB112M4，FWA87-YVB132M4，FWA87-YVB160M4，FWA87-YVB180M4，FWA87-YVB200M4，FWA87-YVB71M4，FWA87-YVB80M4，FWA87-YVB90M4，FWA87-YVP100M4，FWA87-YVP112M4，FWA87-YVP132M4，FWA87-YVP160M4，FWA87-YVP180M4，FWA87-YVP200M4，FWA87-YVP71M4，FWA87-YVP80M4，FWA87-YVP90M4，FWA87-YVPEJ100M4，FWA87-YVPEJ112M4，FWA87-YVPEJ132M4，FWA87-YVPEJ160M4，FWA87-YVPEJ180M4，FWA87-YVPEJ200M4，FWA87-YVPEJ71M4，FWA87-YVPEJ80M4，FWA87-YVPEJ90M4，XDFA87-Y0.37KW，XDFA87-Y0.55KW，XDFA87-Y0.75KW，XDFA87-Y1.1KW，XDFA87-Y1.5KW，XDFA87-Y100M4，XDFA87-Y112M4，XDFA87-Y11KW，XDFA87-Y132M4，XDFA87-Y15KW，XDFA87-Y160M4，XDFA87-Y18.5KW，XDFA87-Y180M4，XDFA87-Y2.2KW，XDFA87-Y200M4，XDFA87-Y22KW，XDFA87-Y3KW，XDFA87-Y4KW，XDFA87-Y5.5KW，XDFA87-Y7.5KW，XDFA87-Y71M4，XDFA87-Y80M4，XDFA87-Y90M4，XDFA87-YB100M4，XDFA87-YB112M4，XDFA87-YB132M4，XDFA87-YB160M4，XDFA87-YB180M4，XDFA87-YB200M4，XDFA87-YB71M4，XDFA87-YB80M4，XDFA87-YB90M4，XDFA87-YDP100M4，XDFA87-YDP112M4，XDFA87-YDP132M4，XDFA87-YDP160M4，XDFA87-YDP180M4，XDFA87-YDP200M4，XDFA87-YDP71M4，XDFA87-YDP80M4，XDFA87-YDP90M4，XDFA87-YE100M4，XDFA87-YE112M4，XDFA87-YE132M4，XDFA87-YE160M4，XDFA87-YE180M4，XDFA87-YE200M4，XDFA87-YE71M4，XDFA87-YE80M4，XDFA87-YE90M4，XDFA87-YEJ100M4，XDFA87-YEJ112M4，XDFA87-YEJ132M4，XDFA87-YEJ160M4，XDFA87-YEJ180M4，XDFA87-YEJ200M4，XDFA87-YEJ71M4，XDFA87-YEJ80M4，XDFA87-YEJ90M4，XDFA87-YEJB100M4，XDFA87-YEJB112M4，XDFA87-YEJB132M4，XDFA87-YEJB160M4，XDFA87-YEJB180M4，XDFA87-YEJB200M4，XDFA87-YEJB71M4，XDFA87-YEJB80M4，XDFA87-YEJB90M4，XDFA87-YP100M4，XDFA87-YP112M4，XDFA87-YP132M4，XDFA87-YP160M4，XDFA87-YP180M4，XDFA87-YP200M4，XDFA87-YP71M4，XDFA87-YP80M4，XDFA87-YP90M4，XDFA87-YPB100M4，XDFA87-YPB112M4，XDFA87-YPB132M4，XDFA87-YPB160M4，XDFA87-YPB180M4，XDFA87-YPB200M4，XDFA87-YPB71M4，XDFA87-YPB80M4，XDFA87-YPB90M4，XDFA87-YPE100M4，XDFA87-YPE112M4，XDFA87-YPE132M4，XDFA87-YPE160M4，XDFA87-YPE180M4，XDFA87-YPE200M4，XDFA87-YPE71M4，XDFA87-YPE80M4，XDFA87-YPE90M4，XDFA87-YS100M4，XDFA87-YS112M4，XDFA87-YS132M4，XDFA87-YS160M4，XDFA87-YS180M4，XDFA87-YS200M4，XDFA87-YS71M4，XDFA87-YS80M4，XDFA87-YS90M4，XDFA87-YVB100M4，XDFA87-YVB112M4，XDFA87-YVB132M4，XDFA87-YVB160M4，XDFA87-YVB180M4，XDFA87-YVB200M4，XDFA87-YVB71M4，XDFA87-YVB80M4，XDFA87-YVB90M4，XDFA87-YVP100M4，XDFA87-YVP112M4，XDFA87-YVP132M4，XDFA87-YVP160M4，XDFA87-YVP180M4，XDFA87-YVP200M4，XDFA87-YVP71M4，XDFA87-YVP80M4，XDFA87-YVP90M4，XDFA87-YVPEJ100M4，XDFA87-YVPEJ112M4，XDFA87-YVPEJ132M4，XDFA87-YVPEJ160M4，XDFA87-YVPEJ180M4，XDFA87-YVPEJ200M4，XDFA87-YVPEJ71M4，XDFA87-YVPEJ80M4，XDFA87-YVPEJ90M4，JCFA87-Y0.37KW，JCFA87-Y0.55KW，JCFA87-Y0.75KW，JCFA87-Y1.1KW，JCFA87-Y1.5KW，JCFA87-Y100M4，JCFA87-Y112M4，JCFA87-Y11KW，JCFA87-Y132M4，JCFA87-Y15KW，JCFA87-Y160M4，JCFA87-Y18.5KW，JCFA87-Y180M4，JCFA87-Y2.2KW，JCFA87-Y200M4，JCFA87-Y22KW，JCFA87-Y3KW，JCFA87-Y4KW，JCFA87-Y5.5KW，JCFA87-Y7.5KW，JCFA87-Y71M4，JCFA87-Y80M4，JCFA87-Y90M4，JCFA87-YB100M4，JCFA87-YB112M4，JCFA87-YB132M4，JCFA87-YB160M4，JCFA87-YB180M4，JCFA87-YB200M4，JCFA87-YB71M4，JCFA87-YB80M4，JCFA87-YB90M4，JCFA87-YDP100M4，JCFA87-YDP112M4，JCFA87-YDP132M4，JCFA87-YDP160M4，JCFA87-YDP180M4，JCFA87-YDP200M4，JCFA87-YDP71M4，JCFA87-YDP80M4，JCFA87-YDP90M4，JCFA87-YE100M4，JCFA87-YE112M4，JCFA87-YE132M4，JCFA87-YE160M4，JCFA87-YE180M4，JCFA87-YE200M4，JCFA87-YE71M4，JCFA87-YE80M4，JCFA87-YE90M4，JCFA87-YEJ100M4，JCFA87-YEJ112M4，JCFA87-YEJ132M4，JCFA87-YEJ160M4，JCFA87-YEJ180M4，JCFA87-YEJ200M4，JCFA87-YEJ71M4，JCFA87-YEJ80M4，JCFA87-YEJ90M4，JCFA87-YEJB100M4，JCFA87-YEJB112M4，JCFA87-YEJB132M4，JCFA87-YEJB160M4，JCFA87-YEJB180M4，JCFA87-YEJB200M4，JCFA87-YEJB71M4，JCFA87-YEJB80M4，JCFA87-YEJB90M4，JCFA87-YP100M4，JCFA87-YP112M4，JCFA87-YP132M4，JCFA87-YP160M4，JCFA87-YP180M4，JCFA87-YP200M4，JCFA87-YP71M4，JCFA87-YP80M4，JCFA87-YP90M4，JCFA87-YPB100M4，JCFA87-YPB112M4，JCFA87-YPB132M4，JCFA87-YPB160M4，JCFA87-YPB180M4，JCFA87-YPB200M4，JCFA87-YPB71M4，JCFA87-YPB80M4，JCFA87-YPB90M4，JCFA87-YPE100M4，JCFA87-YPE112M4，JCFA87-YPE132M4，JCFA87-YPE160M4，JCFA87-YPE180M4，JCFA87-YPE200M4，JCFA87-YPE71M4，JCFA87-YPE80M4，JCFA87-YPE90M4，JCFA87-YS100M4，JCFA87-YS112M4，JCFA87-YS132M4，JCFA87-YS160M4，JCFA87-YS180M4，JCFA87-YS200M4，JCFA87-YS71M4，JCFA87-YS80M4，JCFA87-YS90M4，JCFA87-YVB100M4，JCFA87-YVB112M4，JCFA87-YVB132M4，JCFA87-YVB160M4，JCFA87-YVB180M4，JCFA87-YVB200M4，JCFA87-YVB71M4，JCFA87-YVB80M4，JCFA87-YVB90M4，JCFA87-YVP100M4，JCFA87-YVP112M4，JCFA87-YVP132M4，JCFA87-YVP160M4，JCFA87-YVP180M4，JCFA87-YVP200M4，JCFA87-YVP71M4，JCFA87-YVP80M4，JCFA87-YVP90M4，JCFA87-YVPEJ100M4，JCFA87-YVPEJ112M4，JCFA87-YVPEJ132M4，JCFA87-YVPEJ160M4，JCFA87-YVPEJ180M4，JCFA87-YVPEJ200M4，JCFA87-YVPEJ71M4，JCFA87-YVPEJ80M4，JCFA87-YVPEJ90M4，YQFA87-Y0.37KW，YQFA87-Y0.55KW，YQFA87-Y0.75KW，YQFA87-Y1.1KW，YQFA87-Y1.5KW，YQFA87-Y100M4，YQFA87-Y112M4，YQFA87-Y11KW，YQFA87-Y132M4，YQFA87-Y15KW，YQFA87-Y160M4，YQFA87-Y18.5KW，YQFA87-Y180M4，YQFA87-Y2.2KW，YQFA87-Y200M4，YQFA87-Y22KW，YQFA87-Y3KW，YQFA87-Y4KW，YQFA87-Y5.5KW，YQFA87-Y7.5KW，YQFA87-Y71M4，YQFA87-Y80M4，YQFA87-Y90M4，YQFA87-YB100M4，YQFA87-YB112M4，YQFA87-YB132M4，YQFA87-YB160M4，YQFA87-YB180M4，YQFA87-YB200M4，YQFA87-YB71M4，YQFA87-YB80M4，YQFA87-YB90M4，YQFA87-YDP100M4，YQFA87-YDP112M4，YQFA87-YDP132M4，YQFA87-YDP160M4，YQFA87-YDP180M4，YQFA87-YDP200M4，YQFA87-YDP71M4，YQFA87-YDP80M4，YQFA87-YDP90M4，YQFA87-YE100M4，YQFA87-YE112M4，YQFA87-YE132M4，YQFA87-YE160M4，YQFA87-YE180M4，YQFA87-YE200M4，YQFA87-YE71M4，YQFA87-YE80M4，YQFA87-YE90M4，YQFA87-YEJ100M4，YQFA87-YEJ112M4，YQFA87-YEJ132M4，YQFA87-YEJ160M4，YQFA87-YEJ180M4，YQFA87-YEJ200M4，YQFA87-YEJ71M4，YQFA87-YEJ80M4，YQFA87-YEJ90M4，YQFA87-YEJB100M4，YQFA87-YEJB112M4，YQFA87-YEJB132M4，YQFA87-YEJB160M4，YQFA87-YEJB180M4，YQFA87-YEJB200M4，YQFA87-YEJB71M4，YQFA87-YEJB80M4，YQFA87-YEJB90M4，YQFA87-YP100M4，YQFA87-YP112M4，YQFA87-YP132M4，YQFA87-YP160M4，YQFA87-YP180M4，YQFA87-YP200M4，YQFA87-YP71M4，YQFA87-YP80M4，YQFA87-YP90M4，YQFA87-YPB100M4，YQFA87-YPB112M4，YQFA87-YPB132M4，YQFA87-YPB160M4，YQFA87-YPB180M4，YQFA87-YPB200M4，YQFA87-YPB71M4，YQFA87-YPB80M4，YQFA87-YPB90M4，YQFA87-YPE100M4，YQFA87-YPE112M4，YQFA87-YPE132M4，YQFA87-YPE160M4，YQFA87-YPE180M4，YQFA87-YPE200M4，YQFA87-YPE71M4，YQFA87-YPE80M4，YQFA87-YPE90M4，YQFA87-YS100M4，YQFA87-YS112M4，YQFA87-YS132M4，YQFA87-YS160M4，YQFA87-YS180M4，YQFA87-YS200M4，YQFA87-YS71M4，YQFA87-YS80M4，YQFA87-YS90M4，YQFA87-YVB100M4，YQFA87-YVB112M4，YQFA87-YVB132M4，YQFA87-YVB160M4，YQFA87-YVB180M4，YQFA87-YVB200M4，YQFA87-YVB71M4，YQFA87-YVB80M4，YQFA87-YVB90M4，YQFA87-YVP100M4，YQFA87-YVP112M4，YQFA87-YVP132M4，YQFA87-YVP160M4，YQFA87-YVP180M4，YQFA87-YVP200M4，YQFA87-YVP71M4，YQFA87-YVP80M4，YQFA87-YVP90M4，YQFA87-YVPEJ100M4，YQFA87-YVPEJ112M4，YQFA87-YVPEJ132M4，YQFA87-YVPEJ160M4，YQFA87-YVPEJ180M4，YQFA87-YVPEJ200M4，YQFA87-YVPEJ71M4，YQFA87-YVPEJ80M4，YQFA87-YVPEJ90M4，FA89-Y0.37KW，FA89-Y0.55KW，FA89-Y0.75KW，FA89-Y1.1KW，FA89-Y1.5KW，FA89-Y100M4，FA89-Y112M4，FA89-Y11KW，FA89-Y132M4，FA89-Y15KW，FA89-Y160M4，FA89-Y18.5KW，FA89-Y180M4，FA89-Y2.2KW，FA89-Y200M4，FA89-Y22KW，FA89-Y3KW，FA89-Y4KW，FA89-Y5.5KW，FA89-Y7.5KW，FA89-Y71M4，FA89-Y80M4，FA89-Y90M4，FA89-YB100M4，FA89-YB112M4，FA89-YB132M4，FA89-YB160M4，FA89-YB180M4，FA89-YB200M4，FA89-YB71M4，FA89-YB80M4，FA89-YB90M4，FA89-YDP100M4，FA89-YDP112M4，FA89-YDP132M4，FA89-YDP160M4，FA89-YDP180M4，FA89-YDP200M4，FA89-YDP71M4，FA89-YDP80M4，FA89-YDP90M4，FA89-YE100M4，FA89-YE112M4，FA89-YE132M4，FA89-YE160M4，FA89-YE180M4，FA89-YE200M4，FA89-YE71M4，FA89-YE80M4，FA89-YE90M4，FA89-YEJ100M4，FA89-YEJ112M4，FA89-YEJ132M4，FA89-YEJ160M4，FA89-YEJ180M4，FA89-YEJ200M4，FA89-YEJ71M4，FA89-YEJ80M4，FA89-YEJ90M4，FA89-YEJB100M4，FA89-YEJB112M4，FA89-YEJB132M4，FA89-YEJB160M4，FA89-YEJB180M4，FA89-YEJB200M4，FA89-YEJB71M4，FA89-YEJB80M4，FA89-YEJB90M4，FA89-YP100M4，FA89-YP112M4，FA89-YP132M4，FA89-YP160M4，FA89-YP180M4，FA89-YP200M4，FA89-YP71M4，FA89-YP80M4，FA89-YP90M4，FA89-YPB100M4，FA89-YPB112M4，FA89-YPB132M4，FA89-YPB160M4，FA89-YPB180M4，FA89-YPB200M4，FA89-YPB71M4，FA89-YPB80M4，FA89-YPB90M4，FA89-YPE100M4，FA89-YPE112M4，FA89-YPE132M4，FA89-YPE160M4，FA89-YPE180M4，FA89-YPE200M4，FA89-YPE71M4，FA89-YPE80M4，FA89-YPE90M4，FA89-YS100M4，FA89-YS112M4，FA89-YS132M4，FA89-YS160M4，FA89-YS180M4，FA89-YS200M4，FA89-YS71M4，FA89-YS80M4，FA89-YS90M4，FA89-YVB100M4，FA89-YVB112M4，FA89-YVB132M4，FA89-YVB160M4，FA89-YVB180M4，FA89-YVB200M4，FA89-YVB71M4，FA89-YVB80M4，FA89-YVB90M4，FA89-YVP100M4，FA89-YVP112M4，FA89-YVP132M4，FA89-YVP160M4，FA89-YVP180M4，FA89-YVP200M4，FA89-YVP71M4，FA89-YVP80M4，FA89-YVP90M4，FA89-YVPEJ100M4，FA89-YVPEJ112M4，FA89-YVPEJ132M4，FA89-YVPEJ160M4，FA89-YVPEJ180M4，FA89-YVPEJ200M4，FA89-YVPEJ71M4，FA89-YVPEJ80M4，FA89-YVPEJ90M4，FA87SF80，FA87SF90，FA87SF100，FA87SF112，FA87SF115，FA87SF140，FA87SF160，FA87SF190。
