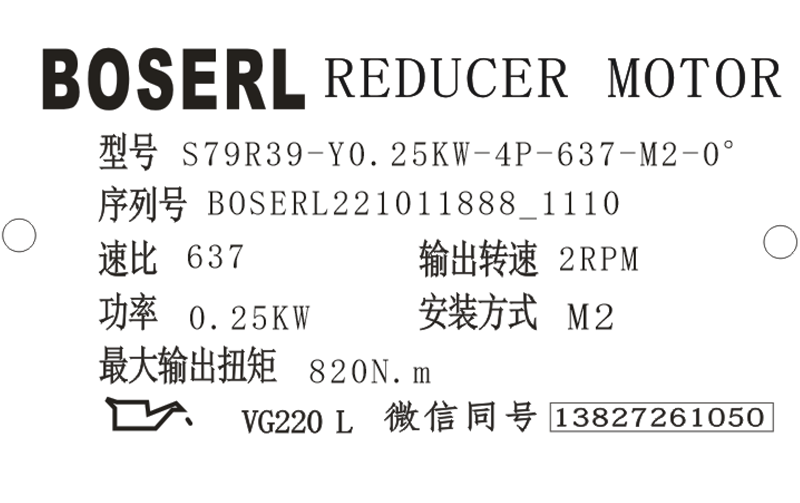

S79R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的S79R39減速機選型樣本。

S79R39-Y0.25KW-4P-637-M2-0°

S/R：系列代號

79/39：減速機規格代號

Y：電機

0.25KW：電機功率

4P：電機級數

637：減速機傳動比

M2：減速機安裝位置

0°：接線盒位置

S79R39減速機電機接線注意事項：

電機本體并不附帶保護裝置。按照電氣設備技術標準的規定，必須安裝過載保護裝置。同時，推薦安裝漏電斷路器等其它保護裝置。否則有可能會導致?lián)p傷、觸電、火災、燒傷。齒輪減速電機

請將接線時的電壓壓降控制在2%以內，接線距離過長，可導致電壓壓降過大，電機可能無法啟動。

進行反轉時，請務必先暫停，然后開始反轉。逆向制動引起的正反運轉可能會損壞裝置。

附帶制動器時，制動線圈應與電機繞組同步通斷。

測定絕緣電阻時，請勿觸摸端子。否則有可能會導致觸電。

若繞組通制動不通，電機會卡死燒機；若制動通繞組不通，有可能會導致線圈燒毀、火災。自鎖減速機

S79R39減速機電機噪音故障維修：

風葉擦風罩將，風葉/風罩扳正，或更換變型零部件；

軸承壞，更換軸承；

底板松動，擰緊固定螺栓；

電機缺相運行:電源接觸不良，修復觸點及電源線路；

電機缺相運行:線圈斷路，更換定子線圈；

氣隙不均，檢查并校正軸承座配合/更換端蓋或法蘭；

定轉子擦，更換電機；

轉子不平衡量大，重新校平衡；S系列減速機

轉子斷條，更換轉子；線圈內有一個線苞嵌反，更換定子線圈。

S79R39減速電機型號：

YQS77R37-Y63M4，YQS77R37-Y71M4，YQS77R37-Y80M4，YQS77R37-Y90M4，YQS77RF37-Y0.12KW，YQS77RF37-Y0.18KW，YQS77RF37-Y0.25KW，YQS77RF37-Y0.37KW，YQS77RF37-Y0.55KW，YQS77RF37-Y0.75KW，YQS77RF37-Y1.1KW，YQS77RF37-Y63M4，YQS77RF37-Y71M4，YQS77RF37-Y80M4，YQS77RF37-Y90M4，YQS77RF37-YB63M4，YQS77RF37-YB71M4，YQS77RF37-YB80M4，YQS77RF37-YB90S4，YQS77RF37-YDP63M4，YQS77RF37-YDP71M4，YQS77RF37-YDP80M4，YQS77RF37-YDP90S4，YQS77RF37-YE63M4，YQS77RF37-YE71M4，YQS77RF37-YE80M4，YQS77RF37-YE90S4，YQS77RF37-YEJ63M4，YQS77RF37-YEJ71M4，YQS77RF37-YEJ80M4，YQS77RF37-YEJ90S4，YQS77RF37-YEJB63M4，YQS77RF37-YEJB71M4，YQS77RF37-YEJB80M4，YQS77RF37-YEJB90S4，YQS77RF37-YP63M4，YQS77RF37-YP71M4，YQS77RF37-YP80M4，YQS77RF37-YP90S4，YQS77RF37-YPB63M4，YQS77RF37-YPB71M4，YQS77RF37-YPB80M4，YQS77RF37-YPB90S4，YQS77RF37-YPE63M4，YQS77RF37-YPE71M4，YQS77RF37-YPE80M4，YQS77RF37-YPE90S4，YQS77RF37-YS63M4，YQS77RF37-YS71M4，YQS77RF37-YS80M4，YQS77RF37-YS90S4，YQS77RF37-YVB63M4，YQS77RF37-YVB71M4，YQS77RF37-YVB80M4，YQS77RF37-YVB90S4，YQS77RF37-YVP63M4，YQS77RF37-YVP71M4，YQS77RF37-YVP80M4，YQS77RF37-YVP90S4，AS77R37-Y63M4，AS77R37-Y71M4，AS77R37-Y80M4，AS77R37-Y90M4，AS77RF37-Y0.12KW，AS77RF37-Y0.18KW，AS77RF37-Y0.25KW，AS77RF37-Y0.37KW，AS77RF37-Y0.55KW，AS77RF37-Y0.75KW，AS77RF37-Y1.1KW，AS77RF37-Y63M4，AS77RF37-Y71M4，AS77RF37-Y80M4，AS77RF37-Y90M4，AS77RF37-YB63M4，AS77RF37-YB71M4，AS77RF37-YB80M4，AS77RF37-YB90S4，AS77RF37-YDP63M4，AS77RF37-YDP71M4，AS77RF37-YDP80M4，AS77RF37-YDP90S4，AS77RF37-YE63M4，AS77RF37-YE71M4，AS77RF37-YE80M4，AS77RF37-YE90S4，AS77RF37-YEJ63M4，AS77RF37-YEJ71M4，AS77RF37-YEJ80M4，AS77RF37-YEJ90S4，AS77RF37-YEJB63M4，AS77RF37-YEJB71M4，AS77RF37-YEJB80M4，AS77RF37-YEJB90S4，AS77RF37-YP63M4，AS77RF37-YP71M4，AS77RF37-YP80M4，AS77RF37-YP90S4，AS77RF37-YPB63M4，AS77RF37-YPB71M4，AS77RF37-YPB80M4，AS77RF37-YPB90S4，AS77RF37-YPE63M4，AS77RF37-YPE71M4，AS77RF37-YPE80M4，AS77RF37-YPE90S4，AS77RF37-YS63M4，AS77RF37-YS71M4，AS77RF37-YS80M4，AS77RF37-YS90S4，AS77RF37-YVB63M4，AS77RF37-YVB71M4，AS77RF37-YVB80M4，AS77RF37-YVB90S4，AS77RF37-YVP63M4，AS77RF37-YVP71M4，AS77RF37-YVP80M4，AS77RF37-YVP90S4，SS77R37-Y63M4，SS77R37-Y71M4，SS77R37-Y80M4，SS77R37-Y90M4，SS77RF37-Y0.12KW，SS77RF37-Y0.18KW，SS77RF37-Y0.25KW，SS77RF37-Y0.37KW，SS77RF37-Y0.55KW，SS77RF37-Y0.75KW，SS77RF37-Y1.1KW，SS77RF37-Y63M4，SS77RF37-Y71M4，SS77RF37-Y80M4，SS77RF37-Y90M4，SS77RF37-YB63M4，SS77RF37-YB71M4，SS77RF37-YB80M4，SS77RF37-YB90S4，SS77RF37-YDP63M4，SS77RF37-YDP71M4，SS77RF37-YDP80M4，SS77RF37-YDP90S4，SS77RF37-YE63M4，SS77RF37-YE71M4，SS77RF37-YE80M4，SS77RF37-YE90S4，SS77RF37-YEJ63M4，SS77RF37-YEJ71M4，SS77RF37-YEJ80M4，SS77RF37-YEJ90S4，SS77RF37-YEJB63M4，SS77RF37-YEJB71M4，SS77RF37-YEJB80M4，SS77RF37-YEJB90S4，SS77RF37-YP63M4，SS77RF37-YP71M4，SS77RF37-YP80M4，SS77RF37-YP90S4，SS77RF37-YPB63M4，SS77RF37-YPB71M4，SS77RF37-YPB80M4，SS77RF37-YPB90S4，SS77RF37-YPE63M4，SS77RF37-YPE71M4，SS77RF37-YPE80M4，SS77RF37-YPE90S4，SS77RF37-YS63M4，SS77RF37-YS71M4，SS77RF37-YS80M4，SS77RF37-YS90S4，SS77RF37-YVB63M4，SS77RF37-YVB71M4，SS77RF37-YVB80M4，SS77RF37-YVB90S4，SS77RF37-YVP63M4，SS77RF37-YVP71M4，SS77RF37-YVP80M4，SS77RF37-YVP90S4，WS77R37-Y63M4，WS77R37-Y71M4，WS77R37-Y80M4，WS77R37-Y90M4，WS77RF37-Y0.12KW，WS77RF37-Y0.18KW，WS77RF37-Y0.25KW，WS77RF37-Y0.37KW，WS77RF37-Y0.55KW，WS77RF37-Y0.75KW，WS77RF37-Y1.1KW，WS77RF37-Y63M4，WS77RF37-Y71M4，WS77RF37-Y80M4，WS77RF37-Y90M4，WS77RF37-YB63M4，WS77RF37-YB71M4，WS77RF37-YB80M4，WS77RF37-YB90S4，WS77RF37-YDP63M4，WS77RF37-YDP71M4，WS77RF37-YDP80M4，WS77RF37-YDP90S4，WS77RF37-YE63M4，WS77RF37-YE71M4，WS77RF37-YE80M4，WS77RF37-YE90S4，WS77RF37-YEJ63M4，WS77RF37-YEJ71M4，WS77RF37-YEJ80M4，WS77RF37-YEJ90S4，WS77RF37-YEJB63M4，WS77RF37-YEJB71M4，WS77RF37-YEJB80M4，WS77RF37-YEJB90S4，WS77RF37-YP63M4，WS77RF37-YP71M4，WS77RF37-YP80M4，WS77RF37-YP90S4，WS77RF37-YPB63M4，WS77RF37-YPB71M4，WS77RF37-YPB80M4，WS77RF37-YPB90S4，WS77RF37-YPE63M4，WS77RF37-YPE71M4，WS77RF37-YPE80M4，WS77RF37-YPE90S4，WS77RF37-YS63M4，WS77RF37-YS71M4，WS77RF37-YS80M4，WS77RF37-YS90S4，WS77RF37-YVB63M4，WS77RF37-YVB71M4，WS77RF37-YVB80M4，WS77RF37-YVB90S4，WS77RF37-YVP63M4，WS77RF37-YVP71M4，WS77RF37-YVP80M4，WS77RF37-YVP90S4，XDS77R37-Y63M4，XDS77R37-Y71M4，XDS77R37-Y80M4，XDS77R37-Y90M4，XDS77RF37-Y0.12KW，XDS77RF37-Y0.18KW，XDS77RF37-Y0.25KW，XDS77RF37-Y0.37KW，XDS77RF37-Y0.55KW，XDS77RF37-Y0.75KW，XDS77RF37-Y1.1KW，XDS77RF37-Y63M4，XDS77RF37-Y71M4，XDS77RF37-Y80M4，XDS77RF37-Y90M4，XDS77RF37-YB63M4，XDS77RF37-YB71M4，XDS77RF37-YB80M4，XDS77RF37-YB90S4，XDS77RF37-YDP63M4，XDS77RF37-YDP71M4，XDS77RF37-YDP80M4，XDS77RF37-YDP90S4，XDS77RF37-YE63M4，XDS77RF37-YE71M4，XDS77RF37-YE80M4，XDS77RF37-YE90S4，XDS77RF37-YEJ63M4，XDS77RF37-YEJ71M4，XDS77RF37-YEJ80M4，XDS77RF37-YEJ90S4，XDS77RF37-YEJB63M4，XDS77RF37-YEJB71M4，XDS77RF37-YEJB80M4，XDS77RF37-YEJB90S4，XDS77RF37-YP63M4，XDS77RF37-YP71M4，XDS77RF37-YP80M4，XDS77RF37-YP90S4，XDS77RF37-YPB63M4，XDS77RF37-YPB71M4，XDS77RF37-YPB80M4，XDS77RF37-YPB90S4，XDS77RF37-YPE63M4，XDS77RF37-YPE71M4，XDS77RF37-YPE80M4，XDS77RF37-YPE90S4，XDS77RF37-YS63M4，XDS77RF37-YS71M4，XDS77RF37-YS80M4，XDS77RF37-YS90S4，XDS77RF37-YVB63M4，XDS77RF37-YVB71M4，XDS77RF37-YVB80M4，XDS77RF37-YVB90S4，XDS77RF37-YVP63M4，XDS77RF37-YVP71M4，XDS77RF37-YVP80M4，XDS77RF37-YVP90S4，JCS77R37-Y63M4，JCS77R37-Y71M4，JCS77R37-Y80M4，JCS77R37-Y90M4，JCS77RF37-Y0.12KW，JCS77RF37-Y0.18KW，JCS77RF37-Y0.25KW，JCS77RF37-Y0.37KW，JCS77RF37-Y0.55KW，JCS77RF37-Y0.75KW，JCS77RF37-Y1.1KW，JCS77RF37-Y63M4，JCS77RF37-Y71M4，JCS77RF37-Y80M4，JCS77RF37-Y90M4，JCS77RF37-YB63M4，JCS77RF37-YB71M4，JCS77RF37-YB80M4，JCS77RF37-YB90S4，JCS77RF37-YDP63M4，JCS77RF37-YDP71M4，JCS77RF37-YDP80M4，JCS77RF37-YDP90S4，JCS77RF37-YE63M4，JCS77RF37-YE71M4，JCS77RF37-YE80M4，JCS77RF37-YE90S4，JCS77RF37-YEJ63M4，JCS77RF37-YEJ71M4，JCS77RF37-YEJ80M4，JCS77RF37-YEJ90S4，JCS77RF37-YEJB63M4，JCS77RF37-YEJB71M4，JCS77RF37-YEJB80M4，JCS77RF37-YEJB90S4，JCS77RF37-YP63M4，JCS77RF37-YP71M4，JCS77RF37-YP80M4，JCS77RF37-YP90S4，JCS77RF37-YPB63M4，JCS77RF37-YPB71M4，JCS77RF37-YPB80M4，JCS77RF37-YPB90S4，JCS77RF37-YPE63M4，JCS77RF37-YPE71M4，JCS77RF37-YPE80M4，JCS77RF37-YPE90S4，JCS77RF37-YS63M4，JCS77RF37-YS71M4，JCS77RF37-YS80M4，JCS77RF37-YS90S4，JCS77RF37-YVB63M4，JCS77RF37-YVB71M4，JCS77RF37-YVB80M4，JCS77RF37-YVB90S4，JCS77RF37-YVP63M4，JCS77RF37-YVP71M4，JCS77RF37-YVP80M4，JCS77RF37-YVP90S4，NS77R37-Y63M4，NS77R37-Y71M4，NS77R37-Y80M4，NS77R37-Y90M4，NS77RF37-Y0.12KW，NS77RF37-Y0.18KW，NS77RF37-Y0.25KW，NS77RF37-Y0.37KW，NS77RF37-Y0.55KW，NS77RF37-Y0.75KW，NS77RF37-Y1.1KW，NS77RF37-Y63M4，NS77RF37-Y71M4，NS77RF37-Y80M4，NS77RF37-Y90M4，NS77RF37-YB63M4，NS77RF37-YB71M4，NS77RF37-YB80M4，NS77RF37-YB90S4，NS77RF37-YDP63M4，NS77RF37-YDP71M4，NS77RF37-YDP80M4，NS77RF37-YDP90S4，NS77RF37-YE63M4，NS77RF37-YE71M4，NS77RF37-YE80M4，NS77RF37-YE90S4，NS77RF37-YEJ63M4，NS77RF37-YEJ71M4，NS77RF37-YEJ80M4，NS77RF37-YEJ90S4，NS77RF37-YEJB63M4，NS77RF37-YEJB71M4，NS77RF37-YEJB80M4，NS77RF37-YEJB90S4，NS77RF37-YP63M4，NS77RF37-YP71M4，NS77RF37-YP80M4，NS77RF37-YP90S4，NS77RF37-YPB63M4，NS77RF37-YPB71M4，NS77RF37-YPB80M4，NS77RF37-YPB90S4，NS77RF37-YPE63M4，NS77RF37-YPE71M4，NS77RF37-YPE80M4，NS77RF37-YPE90S4，NS77RF37-YS63M4，NS77RF37-YS71M4，NS77RF37-YS80M4，NS77RF37-YS90S4，NS77RF37-YVB63M4，NS77RF37-YVB71M4，NS77RF37-YVB80M4，NS77RF37-YVB90S4，NS77RF37-YVP63M4，NS77RF37-YVP71M4，NS77RF37-YVP80M4，NS77RF37-YVP90S4，SW77RW37-Y63M4，SW77RW37-Y71M4，SW77RW37-Y80M4，SW77RW37-Y90M4，SW77RWF37-Y0.12KW，SW77RWF37-Y0.18KW，SW77RWF37-Y0.25KW，SW77RWF37-Y0.37KW，SW77RWF37-Y0.55KW，SW77RWF37-Y0.75KW，SW77RWF37-Y1.1KW，SW77RWF37-Y63M4，SW77RWF37-Y71M4，SW77RWF37-Y80M4，SW77RWF37-Y90M4，SW77RWF37-YB63M4，SW77RWF37-YB71M4，SW77RWF37-YB80M4，SW77RWF37-YB90S4，SW77RWF37-YDP63M4，SW77RWF37-YDP71M4，SW77RWF37-YDP80M4，SW77RWF37-YDP90S4，SW77RWF37-YE63M4，SW77RWF37-YE71M4，SW77RWF37-YE80M4，SW77RWF37-YE90S4，SW77RWF37-YEJ63M4，SW77RWF37-YEJ71M4，SW77RWF37-YEJ80M4，SW77RWF37-YEJ90S4，SW77RWF37-YEJB63M4，SW77RWF37-YEJB71M4，SW77RWF37-YEJB80M4，SW77RWF37-YEJB90S4，SW77RWF37-YP63M4，SW77RWF37-YP71M4，SW77RWF37-YP80M4，SW77RWF37-YP90S4，SW77RWF37-YPB63M4，SW77RWF37-YPB71M4，SW77RWF37-YPB80M4，SW77RWF37-YPB90S4，SW77RWF37-YPE63M4，SW77RWF37-YPE71M4，SW77RWF37-YPE80M4，SW77RWF37-YPE90S4，SW77RWF37-YS63M4，SW77RWF37-YS71M4，SW77RWF37-YS80M4，SW77RWF37-YS90S4，SW77RWF37-YVB63M4，SW77RWF37-YVB71M4，SW77RWF37-YVB80M4，SW77RWF37-YVB90S4，SW77RWF37-YVP63M4，SW77RWF37-YVP71M4，SW77RWF37-YVP80M4，SW77RWF37-YVP90S4，S79R39-Y63M4，S79R39-Y71M4，S79R39-Y80M4，S79R39-Y90M4，S79RF39-Y0.12KW，S79RF39-Y0.18KW，S79RF39-Y0.25KW，S79RF39-Y0.39KW，S79RF39-Y0.55KW，S79RF39-Y0.75KW，S79RF39-Y1.1KW，S79RF39-Y63M4，S79RF39-Y71M4，S79RF39-Y80M4，S79RF39-Y90M4，S79RF39-YB63M4，S79RF39-YB71M4，S79RF39-YB80M4，S79RF39-YB90S4，S79RF39-YDP63M4，S79RF39-YDP71M4，S79RF39-YDP80M4，S79RF39-YDP90S4，S79RF39-YE63M4，S79RF39-YE71M4，S79RF39-YE80M4，S79RF39-YE90S4，S79RF39-YEJ63M4，S79RF39-YEJ71M4，S79RF39-YEJ80M4，S79RF39-YEJ90S4，S79RF39-YEJB63M4，S79RF39-YEJB71M4，S79RF39-YEJB80M4，S79RF39-YEJB90S4，S79RF39-YP63M4，S79RF39-YP71M4，S79RF39-YP80M4，S79RF39-YP90S4，S79RF39-YPB63M4，S79RF39-YPB71M4，S79RF39-YPB80M4，S79RF39-YPB90S4，S79RF39-YPE63M4，S79RF39-YPE71M4，S79RF39-YPE80M4，S79RF39-YPE90S4，S79RF39-YS63M4，S79RF39-YS71M4，S79RF39-YS80M4，S79RF39-YS90S4，S79RF39-YVB63M4，S79RF39-YVB71M4，S79RF39-YVB80M4，S79RF39-YVB90S4，S79RF39-YVP63M4，S79RF39-YVP71M4，S79RF39-YVP80M4，S79RF39-YVP90S4。

S79R39減速電機生產廠家：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ttgylm.com/product/list-sxiliejiansuji-cn.html

推薦型號：S79減速機
