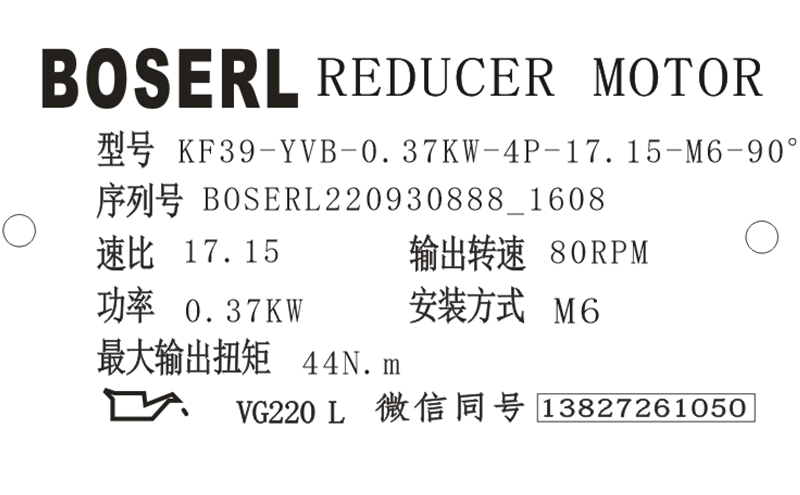

KF39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K39減速機選型樣本。

KF39-YVB-0.37KW-4P-17.15-M6-90°

KF：系列代號

39：減速機規格代號

YVB：電機

0.37KW：電機功率

4P：電機級數

17.15：減速機傳動比

M6：減速機安裝位置

90°：接線盒位置

KF39減速機潤滑油型號：

KF39減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據KF39減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“KF39減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。直角減速機

KF39減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的KF39減速機選型樣本中列出了安裝位置從M1到M6KF39減速機相應的潤滑油加注標準，請自行下載查看。

KF39減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

KF39減速機推薦使用的潤滑油，其等級和粘度指標見下表：

KF39減速機使用說明：

KF39減速機警告說明：由于KF39減速機發熱或KF39減速機油溫過高可能引起燙傷；對KF39減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

KF39減速機注意事項：若未注入正確的KF39減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

KF39減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見KF39減速機說明書安裝位置章節中的內容。

KF39減速機的螺母：立式安裝KF39減速機輸出法蘭螺母規格M8；KF39減速機螺母/螺母擰緊扭矩強度等級10.9。伺服電機減速機

KF39減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

KF39減速機型號：

AKF37-Y0.12SKF，AKF37-Y0.18SKF，AKF37-Y0.25SKF，AKF37-Y0.37SKF，AKF37-Y0.55SKF，AKF37-Y0.75SKF，AKF37-Y1.1SKF，AKF37-Y1.5SKF，AKF37-Y100M4，AKF37-Y2.2SKF，AKF37-Y3SKF，AKF37-Y63M4，AKF37-Y71M4，AKF37-Y80M4，AKF37-Y90M4，AKF37-YB100M4，AKF37-YB63M4，AKF37-YB71M4，AKF37-YB80M4，AKF37-YB90M4，AKF37-YDP100M4，AKF37-YDP63M4，AKF37-YDP71M4，AKF37-YDP80M4，AKF37-YDP90M4，AKF37-YE100M4，AKF37-YE63M4，AKF37-YE71M4，AKF37-YE80M4，AKF37-YE90M4，AKF37-YEJ100M4，AKF37-YEJ63M4，AKF37-YEJ71M4，AKF37-YEJ80M4，AKF37-YEJ90M4，AKF37-YEJB100M4，AKF37-YEJB63M4，AKF37-YEJB71M4，AKF37-YEJB80M4，AKF37-YEJB90M4，AKF37-YP100M4，AKF37-YP63M4，AKF37-YP71M4，AKF37-YP80M4，AKF37-YP90M4，AKF37-YPB100M4，AKF37-YPB63M4，AKF37-YPB71M4，AKF37-YPB80M4，AKF37-YPB90M4，AKF37-YPE100M4，AKF37-YPE63M4，AKF37-YPE71M4，AKF37-YPE80M4，AKF37-YPE90M4，AKF37-YS100M4，AKF37-YS63M4，AKF37-YS71M4，AKF37-YS80M4，AKF37-YS90M4，AKF37-YVB100M4，AKF37-YVB63M4，AKF37-YVB71M4，AKF37-YVB80M4，AKF37-YVB90M4，AKF37-YVP100M4，AKF37-YVP63M4，AKF37-YVP71M4，AKF37-YVP80M4，AKF37-YVP90M4，AKF37-YVPEJ100M4，AKF37-YVPEJ63M4，AKF37-YVPEJ71M4，AKF37-YVPEJ80M4，AKF37-YVPEJ90M4，WKF37-Y0.12SKF，WKF37-Y0.18SKF，WKF37-Y0.25SKF，WKF37-Y0.37SKF，WKF37-Y0.55SKF，WKF37-Y0.75SKF，WKF37-Y1.1SKF，WKF37-Y1.5SKF，WKF37-Y100M4，WKF37-Y2.2SKF，WKF37-Y3SKF，WKF37-Y63M4，WKF37-Y71M4，WKF37-Y80M4，WKF37-Y90M4，WKF37-YB100M4，WKF37-YB63M4，WKF37-YB71M4，WKF37-YB80M4，WKF37-YB90M4，WKF37-YDP100M4，WKF37-YDP63M4，WKF37-YDP71M4，WKF37-YDP80M4，WKF37-YDP90M4，WKF37-YE100M4，WKF37-YE63M4，WKF37-YE71M4，WKF37-YE80M4，WKF37-YE90M4，WKF37-YEJ100M4，WKF37-YEJ63M4，WKF37-YEJ71M4，WKF37-YEJ80M4，WKF37-YEJ90M4，WKF37-YEJB100M4，WKF37-YEJB63M4，WKF37-YEJB71M4，WKF37-YEJB80M4，WKF37-YEJB90M4，WKF37-YP100M4，WKF37-YP63M4，WKF37-YP71M4，WKF37-YP80M4，WKF37-YP90M4，WKF37-YPB100M4，WKF37-YPB63M4，WKF37-YPB71M4，WKF37-YPB80M4，WKF37-YPB90M4，WKF37-YPE100M4，WKF37-YPE63M4，WKF37-YPE71M4，WKF37-YPE80M4，WKF37-YPE90M4，WKF37-YS100M4，WKF37-YS63M4，WKF37-YS71M4，WKF37-YS80M4，WKF37-YS90M4，WKF37-YVB100M4，WKF37-YVB63M4，WKF37-YVB71M4，WKF37-YVB80M4，WKF37-YVB90M4，WKF37-YVP100M4，WKF37-YVP63M4，WKF37-YVP71M4，WKF37-YVP80M4，WKF37-YVP90M4，WKF37-YVPEJ100M4，WKF37-YVPEJ63M4，WKF37-YVPEJ71M4，WKF37-YVPEJ80M4，WKF37-YVPEJ90M4，NKF37-Y0.12SKF，NKF37-Y0.18SKF，NKF37-Y0.25SKF，NKF37-Y0.37SKF，NKF37-Y0.55SKF，NKF37-Y0.75SKF，NKF37-Y1.1SKF，NKF37-Y1.5SKF，NKF37-Y100M4，NKF37-Y2.2SKF，NKF37-Y3SKF，NKF37-Y63M4，NKF37-Y71M4，NKF37-Y80M4，NKF37-Y90M4，NKF37-YB100M4，NKF37-YB63M4，NKF37-YB71M4，NKF37-YB80M4，NKF37-YB90M4，NKF37-YDP100M4，NKF37-YDP63M4，NKF37-YDP71M4，NKF37-YDP80M4，NKF37-YDP90M4，NKF37-YE100M4，NKF37-YE63M4，NKF37-YE71M4，NKF37-YE80M4，NKF37-YE90M4，NKF37-YEJ100M4，NKF37-YEJ63M4，NKF37-YEJ71M4，NKF37-YEJ80M4，NKF37-YEJ90M4，NKF37-YEJB100M4，NKF37-YEJB63M4，NKF37-YEJB71M4，NKF37-YEJB80M4，NKF37-YEJB90M4，NKF37-YP100M4，NKF37-YP63M4，NKF37-YP71M4，NKF37-YP80M4，NKF37-YP90M4，NKF37-YPB100M4，NKF37-YPB63M4，NKF37-YPB71M4，NKF37-YPB80M4，NKF37-YPB90M4，NKF37-YPE100M4，NKF37-YPE63M4，NKF37-YPE71M4，NKF37-YPE80M4，NKF37-YPE90M4，NKF37-YS100M4，NKF37-YS63M4，NKF37-YS71M4，NKF37-YS80M4，NKF37-YS90M4，NKF37-YVB100M4，NKF37-YVB63M4，NKF37-YVB71M4，NKF37-YVB80M4，NKF37-YVB90M4，NKF37-YVP100M4，NKF37-YVP63M4，NKF37-YVP71M4，NKF37-YVP80M4，NKF37-YVP90M4，NKF37-YVPEJ100M4，NKF37-YVPEJ63M4，NKF37-YVPEJ71M4，NKF37-YVPEJ80M4，NKF37-YVPEJ90M4，SKF37-Y0.12SKF，SKF37-Y0.18SKF，SKF37-Y0.25SKF，SKF37-Y0.37SKF，SKF37-Y0.55SKF，SKF37-Y0.75SKF，SKF37-Y1.1SKF，SKF37-Y1.5SKF，SKF37-Y100M4，SKF37-Y2.2SKF，SKF37-Y3SKF，SKF37-Y63M4，SKF37-Y71M4，SKF37-Y80M4，SKF37-Y90M4，SKF37-YB100M4，SKF37-YB63M4，SKF37-YB71M4，SKF37-YB80M4，SKF37-YB90M4，SKF37-YDP100M4，SKF37-YDP63M4，SKF37-YDP71M4，SKF37-YDP80M4，SKF37-YDP90M4，SKF37-YE100M4，SKF37-YE63M4，SKF37-YE71M4，SKF37-YE80M4，SKF37-YE90M4，SKF37-YEJ100M4，SKF37-YEJ63M4，SKF37-YEJ71M4，SKF37-YEJ80M4，SKF37-YEJ90M4，SKF37-YEJB100M4，SKF37-YEJB63M4，SKF37-YEJB71M4，SKF37-YEJB80M4，SKF37-YEJB90M4，SKF37-YP100M4，SKF37-YP63M4，SKF37-YP71M4，SKF37-YP80M4，SKF37-YP90M4，SKF37-YPB100M4，SKF37-YPB63M4，SKF37-YPB71M4，SKF37-YPB80M4，SKF37-YPB90M4，SKF37-YPE100M4，SKF37-YPE63M4，SKF37-YPE71M4，SKF37-YPE80M4，SKF37-YPE90M4，SKF37-YS100M4，SKF37-YS63M4，SKF37-YS71M4，SKF37-YS80M4，SKF37-YS90M4，SKF37-YVB100M4，SKF37-YVB63M4，SKF37-YVB71M4，SKF37-YVB80M4，SKF37-YVB90M4，SKF37-YVP100M4，SKF37-YVP63M4，SKF37-YVP71M4，SKF37-YVP80M4，SKF37-YVP90M4，SKF37-YVPEJ100M4，SKF37-YVPEJ63M4，SKF37-YVPEJ71M4，SKF37-YVPEJ80M4，SKF37-YVPEJ90M4，GKF39-Y0.12SKF，GKF39-Y0.18SKF，GKF39-Y0.25SKF，GKF39-Y0.37SKF，GKF39-Y0.55SKF，GKF39-Y0.75SKF，GKF39-Y1.1SKF，GKF39-Y1.5SKF，GKF39-Y100M4，GKF39-Y2.2SKF，GKF39-Y3SKF，GKF39-Y63M4，GKF39-Y71M4，GKF39-Y80M4，GKF39-Y90M4，GKF39-YB100M4，GKF39-YB63M4，GKF39-YB71M4，GKF39-YB80M4，GKF39-YB90M4，GKF39-YDP100M4，GKF39-YDP63M4，GKF39-YDP71M4，GKF39-YDP80M4，GKF39-YDP90M4，GKF39-YE100M4，GKF39-YE63M4，GKF39-YE71M4，GKF39-YE80M4，GKF39-YE90M4，GKF39-YEJ100M4，GKF39-YEJ63M4，GKF39-YEJ71M4，GKF39-YEJ80M4，GKF39-YEJ90M4，GKF39-YEJB100M4，GKF39-YEJB63M4，GKF39-YEJB71M4，GKF39-YEJB80M4，GKF39-YEJB90M4，GKF39-YP100M4，GKF39-YP63M4，GKF39-YP71M4，GKF39-YP80M4，GKF39-YP90M4，GKF39-YPB100M4，GKF39-YPB63M4，GKF39-YPB71M4，GKF39-YPB80M4，GKF39-YPB90M4，GKF39-YPE100M4，GKF39-YPE63M4，GKF39-YPE71M4，GKF39-YPE80M4，GKF39-YPE90M4，GKF39-YS100M4，GKF39-YS63M4，GKF39-YS71M4，GKF39-YS80M4，GKF39-YS90M4，GKF39-YVB100M4，GKF39-YVB63M4，GKF39-YVB71M4，GKF39-YVB80M4，GKF39-YVB90M4，GKF39-YVP100M4，GKF39-YVP63M4，GKF39-YVP71M4，GKF39-YVP80M4，GKF39-YVP90M4，GKF39-YVPEJ100M4，GKF39-YVPEJ63M4，GKF39-YVPEJ71M4，GKF39-YVPEJ80M4，GKF39-YVPEJ90M4。

KF39減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ttgylm.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K39減速機
