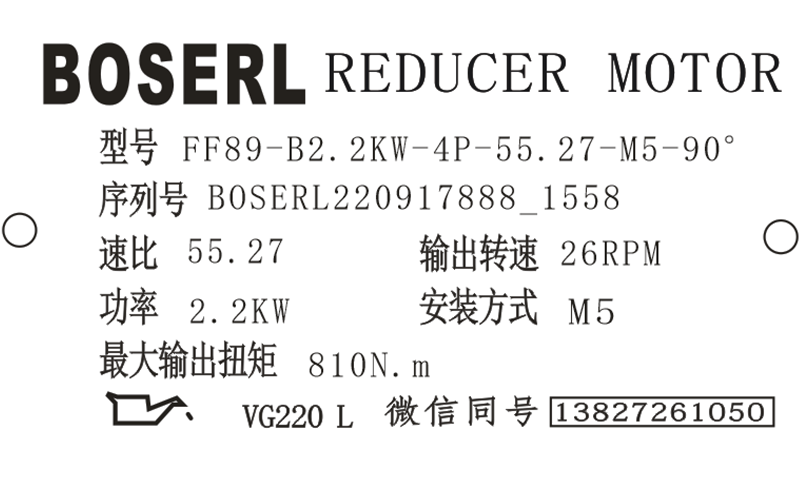

FF89減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF89減速機選型樣本。

FF89-YVPEJ2.2KW-4P-55.27-M5-90°

FF：系列代號

89：減速機規格代號

Y：電機

VPEJ：變頻剎車電機

2.2KW：電機功率

4P：電機級數

55.27：減速機傳動比

M5：減速機安裝位置

90°：接線盒位置

FF89減速機潤滑油型號：

FF89減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的FF89減速機選型樣本中列出了安裝位置從M1到M6FF89減速機相應的潤滑油加注標準，請自行下載查看。平行軸斜齒輪減速機

FF89減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據FF89減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“FF89減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。

FF89減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

FF89減速機推薦使用的潤滑油，其等級和粘度指標見下表：

FF89減速機使用說明：

FF89減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

FF89減速機警告說明：由于FF89減速機發熱或FF89減速機油溫過高可能引起燙傷；對FF89減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

FF89減速機注意事項：若未注入正確的FF89減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

FF89減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見FF89減速機說明書安裝位置章節中的內容。剎車電機減速機

FF89減速機的螺母：立式安裝FF89減速機輸出法蘭螺母規格M16；FF89減速機螺母/螺母擰緊扭矩強度等級10.9。

FF89減速機型號：

WFF87-Y0.37KW，WFF87-Y0.55KW，WFF87-Y0.75KW，WFF87-Y1.1KW，WFF87-Y1.5KW，WFF87-Y100M4，WFF87-Y112M4，WFF87-Y11KW，WFF87-Y132M4，WFF87-Y15KW，WFF87-Y160M4，WFF87-Y18.5KW，WFF87-Y180M4，WFF87-Y2.2KW，WFF87-Y200M4，WFF87-Y22KW，WFF87-Y3KW，WFF87-Y4KW，WFF87-Y5.5KW，WFF87-Y7.5KW，WFF87-Y71M4，WFF87-Y80M4，WFF87-Y90M4，WFF87-YB100M4，WFF87-YB112M4，WFF87-YB132M4，WFF87-YB160M4，WFF87-YB180M4，WFF87-YB200M4，WFF87-YB71M4，WFF87-YB80M4，WFF87-YB90M4，WFF87-YDP100M4，WFF87-YDP112M4，WFF87-YDP132M4，WFF87-YDP160M4，WFF87-YDP180M4，WFF87-YDP200M4，WFF87-YDP71M4，WFF87-YDP80M4，WFF87-YDP90M4，WFF87-YE100M4，WFF87-YE112M4，WFF87-YE132M4，WFF87-YE160M4，WFF87-YE180M4，WFF87-YE200M4，WFF87-YE71M4，WFF87-YE80M4，WFF87-YE90M4，WFF87-YEJ100M4，WFF87-YEJ112M4，WFF87-YEJ132M4，WFF87-YEJ160M4，WFF87-YEJ180M4，WFF87-YEJ200M4，WFF87-YEJ71M4，WFF87-YEJ80M4，WFF87-YEJ90M4，WFF87-YEJB100M4，WFF87-YEJB112M4，WFF87-YEJB132M4，WFF87-YEJB160M4，WFF87-YEJB180M4，WFF87-YEJB200M4，WFF87-YEJB71M4，WFF87-YEJB80M4，WFF87-YEJB90M4，WFF87-YP100M4，WFF87-YP112M4，WFF87-YP132M4，WFF87-YP160M4，WFF87-YP180M4，WFF87-YP200M4，WFF87-YP71M4，WFF87-YP80M4，WFF87-YP90M4，WFF87-YPB100M4，WFF87-YPB112M4，WFF87-YPB132M4，WFF87-YPB160M4，WFF87-YPB180M4，WFF87-YPB200M4，WFF87-YPB71M4，WFF87-YPB80M4，WFF87-YPB90M4，WFF87-YPE100M4，WFF87-YPE112M4，WFF87-YPE132M4，WFF87-YPE160M4，WFF87-YPE180M4，WFF87-YPE200M4，WFF87-YPE71M4，WFF87-YPE80M4，WFF87-YPE90M4，WFF87-YS100M4，WFF87-YS112M4，WFF87-YS132M4，WFF87-YS160M4，WFF87-YS180M4，WFF87-YS200M4，WFF87-YS71M4，WFF87-YS80M4，WFF87-YS90M4，WFF87-YVB100M4，WFF87-YVB112M4，WFF87-YVB132M4，WFF87-YVB160M4，WFF87-YVB180M4，WFF87-YVB200M4，WFF87-YVB71M4，WFF87-YVB80M4，WFF87-YVB90M4，WFF87-YVP100M4，WFF87-YVP112M4，WFF87-YVP132M4，WFF87-YVP160M4，WFF87-YVP180M4，WFF87-YVP200M4，WFF87-YVP71M4，WFF87-YVP80M4，WFF87-YVP90M4，WFF87-YVPEJ100M4，WFF87-YVPEJ112M4，WFF87-YVPEJ132M4，WFF87-YVPEJ160M4，WFF87-YVPEJ180M4，WFF87-YVPEJ200M4，WFF87-YVPEJ71M4，WFF87-YVPEJ80M4，WFF87-YVPEJ90M4，NFF87-Y0.37KW，NFF87-Y0.55KW，NFF87-Y0.75KW，NFF87-Y1.1KW，NFF87-Y1.5KW，NFF87-Y100M4，NFF87-Y112M4，NFF87-Y11KW，NFF87-Y132M4，NFF87-Y15KW，NFF87-Y160M4，NFF87-Y18.5KW，NFF87-Y180M4，NFF87-Y2.2KW，NFF87-Y200M4，NFF87-Y22KW，NFF87-Y3KW，NFF87-Y4KW，NFF87-Y5.5KW，NFF87-Y7.5KW，NFF87-Y71M4，NFF87-Y80M4，NFF87-Y90M4，NFF87-YB100M4，NFF87-YB112M4，NFF87-YB132M4，NFF87-YB160M4，NFF87-YB180M4，NFF87-YB200M4，NFF87-YB71M4，NFF87-YB80M4，NFF87-YB90M4，NFF87-YDP100M4，NFF87-YDP112M4，NFF87-YDP132M4，NFF87-YDP160M4，NFF87-YDP180M4，NFF87-YDP200M4，NFF87-YDP71M4，NFF87-YDP80M4，NFF87-YDP90M4，NFF87-YE100M4，NFF87-YE112M4，NFF87-YE132M4，NFF87-YE160M4，NFF87-YE180M4，NFF87-YE200M4，NFF87-YE71M4，NFF87-YE80M4，NFF87-YE90M4，NFF87-YEJ100M4，NFF87-YEJ112M4，NFF87-YEJ132M4，NFF87-YEJ160M4，NFF87-YEJ180M4，NFF87-YEJ200M4，NFF87-YEJ71M4，NFF87-YEJ80M4，NFF87-YEJ90M4，NFF87-YEJB100M4，NFF87-YEJB112M4，NFF87-YEJB132M4，NFF87-YEJB160M4，NFF87-YEJB180M4，NFF87-YEJB200M4，NFF87-YEJB71M4，NFF87-YEJB80M4，NFF87-YEJB90M4，NFF87-YP100M4，NFF87-YP112M4，NFF87-YP132M4，NFF87-YP160M4，NFF87-YP180M4，NFF87-YP200M4，NFF87-YP71M4，NFF87-YP80M4，NFF87-YP90M4，NFF87-YPB100M4，NFF87-YPB112M4，NFF87-YPB132M4，NFF87-YPB160M4，NFF87-YPB180M4，NFF87-YPB200M4，NFF87-YPB71M4，NFF87-YPB80M4，NFF87-YPB90M4，NFF87-YPE100M4，NFF87-YPE112M4，NFF87-YPE132M4，NFF87-YPE160M4，NFF87-YPE180M4，NFF87-YPE200M4，NFF87-YPE71M4，NFF87-YPE80M4，NFF87-YPE90M4，NFF87-YS100M4，NFF87-YS112M4，NFF87-YS132M4，NFF87-YS160M4，NFF87-YS180M4，NFF87-YS200M4，NFF87-YS71M4，NFF87-YS80M4，NFF87-YS90M4，NFF87-YVB100M4，NFF87-YVB112M4，NFF87-YVB132M4，NFF87-YVB160M4，NFF87-YVB180M4，NFF87-YVB200M4，NFF87-YVB71M4，NFF87-YVB80M4，NFF87-YVB90M4，NFF87-YVP100M4，NFF87-YVP112M4，NFF87-YVP132M4，NFF87-YVP160M4，NFF87-YVP180M4，NFF87-YVP200M4，NFF87-YVP71M4，NFF87-YVP80M4，NFF87-YVP90M4，NFF87-YVPEJ100M4，NFF87-YVPEJ112M4，NFF87-YVPEJ132M4，NFF87-YVPEJ160M4，NFF87-YVPEJ180M4，NFF87-YVPEJ200M4，NFF87-YVPEJ71M4，NFF87-YVPEJ80M4，NFF87-YVPEJ90M4，SFF87-Y0.37KW，SFF87-Y0.55KW，SFF87-Y0.75KW，SFF87-Y1.1KW，SFF87-Y1.5KW，SFF87-Y100M4，SFF87-Y112M4，SFF87-Y11KW，SFF87-Y132M4，SFF87-Y15KW，SFF87-Y160M4，SFF87-Y18.5KW，SFF87-Y180M4，SFF87-Y2.2KW，SFF87-Y200M4，SFF87-Y22KW，SFF87-Y3KW，SFF87-Y4KW，SFF87-Y5.5KW，SFF87-Y7.5KW，SFF87-Y71M4，SFF87-Y80M4，SFF87-Y90M4，SFF87-YB100M4，SFF87-YB112M4，SFF87-YB132M4，SFF87-YB160M4，SFF87-YB180M4，SFF87-YB200M4，SFF87-YB71M4，SFF87-YB80M4，SFF87-YB90M4，SFF87-YDP100M4，SFF87-YDP112M4，SFF87-YDP132M4，SFF87-YDP160M4，SFF87-YDP180M4，SFF87-YDP200M4，SFF87-YDP71M4，SFF87-YDP80M4，SFF87-YDP90M4，SFF87-YE100M4，SFF87-YE112M4，SFF87-YE132M4，SFF87-YE160M4，SFF87-YE180M4，SFF87-YE200M4，SFF87-YE71M4，SFF87-YE80M4，SFF87-YE90M4，SFF87-YEJ100M4，SFF87-YEJ112M4，SFF87-YEJ132M4，SFF87-YEJ160M4，SFF87-YEJ180M4，SFF87-YEJ200M4，SFF87-YEJ71M4，SFF87-YEJ80M4，SFF87-YEJ90M4，SFF87-YEJB100M4，SFF87-YEJB112M4，SFF87-YEJB132M4，SFF87-YEJB160M4，SFF87-YEJB180M4，SFF87-YEJB200M4，SFF87-YEJB71M4，SFF87-YEJB80M4，SFF87-YEJB90M4，SFF87-YP100M4，SFF87-YP112M4，SFF87-YP132M4，SFF87-YP160M4，SFF87-YP180M4，SFF87-YP200M4，SFF87-YP71M4，SFF87-YP80M4，SFF87-YP90M4，SFF87-YPB100M4，SFF87-YPB112M4，SFF87-YPB132M4，SFF87-YPB160M4，SFF87-YPB180M4，SFF87-YPB200M4，SFF87-YPB71M4，SFF87-YPB80M4，SFF87-YPB90M4，SFF87-YPE100M4，SFF87-YPE112M4，SFF87-YPE132M4，SFF87-YPE160M4，SFF87-YPE180M4，SFF87-YPE200M4，SFF87-YPE71M4，SFF87-YPE80M4，SFF87-YPE90M4，SFF87-YS100M4，SFF87-YS112M4，SFF87-YS132M4，SFF87-YS160M4，SFF87-YS180M4，SFF87-YS200M4，SFF87-YS71M4，SFF87-YS80M4，SFF87-YS90M4，SFF87-YVB100M4，SFF87-YVB112M4，SFF87-YVB132M4，SFF87-YVB160M4，SFF87-YVB180M4，SFF87-YVB200M4，SFF87-YVB71M4，SFF87-YVB80M4，SFF87-YVB90M4，SFF87-YVP100M4，SFF87-YVP112M4，SFF87-YVP132M4，SFF87-YVP160M4，SFF87-YVP180M4，SFF87-YVP200M4，SFF87-YVP71M4，SFF87-YVP80M4，SFF87-YVP90M4，SFF87-YVPEJ100M4，SFF87-YVPEJ112M4，SFF87-YVPEJ132M4，SFF87-YVPEJ160M4，SFF87-YVPEJ180M4，SFF87-YVPEJ200M4，SFF87-YVPEJ71M4，SFF87-YVPEJ80M4，SFF87-YVPEJ90M4，AFF87-Y0.37KW，AFF87-Y0.55KW，AFF87-Y0.75KW，AFF87-Y1.1KW，AFF87-Y1.5KW，AFF87-Y100M4，AFF87-Y112M4，AFF87-Y11KW，AFF87-Y132M4，AFF87-Y15KW，AFF87-Y160M4，AFF87-Y18.5KW，AFF87-Y180M4，AFF87-Y2.2KW，AFF87-Y200M4，AFF87-Y22KW，AFF87-Y3KW，AFF87-Y4KW，AFF87-Y5.5KW，AFF87-Y7.5KW，AFF87-Y71M4，AFF87-Y80M4，AFF87-Y90M4，AFF87-YB100M4，AFF87-YB112M4，AFF87-YB132M4，AFF87-YB160M4，AFF87-YB180M4，AFF87-YB200M4，AFF87-YB71M4，AFF87-YB80M4，AFF87-YB90M4，AFF87-YDP100M4，AFF87-YDP112M4，AFF87-YDP132M4，AFF87-YDP160M4，AFF87-YDP180M4，AFF87-YDP200M4，AFF87-YDP71M4，AFF87-YDP80M4，AFF87-YDP90M4，AFF87-YE100M4，AFF87-YE112M4，AFF87-YE132M4，AFF87-YE160M4，AFF87-YE180M4，AFF87-YE200M4，AFF87-YE71M4，AFF87-YE80M4，AFF87-YE90M4，AFF87-YEJ100M4，AFF87-YEJ112M4，AFF87-YEJ132M4，AFF87-YEJ160M4，AFF87-YEJ180M4，AFF87-YEJ200M4，AFF87-YEJ71M4，AFF87-YEJ80M4，AFF87-YEJ90M4，AFF87-YEJB100M4，AFF87-YEJB112M4，AFF87-YEJB132M4，AFF87-YEJB160M4，AFF87-YEJB180M4，AFF87-YEJB200M4，AFF87-YEJB71M4，AFF87-YEJB80M4，AFF87-YEJB90M4，AFF87-YP100M4，AFF87-YP112M4，AFF87-YP132M4，AFF87-YP160M4，AFF87-YP180M4，AFF87-YP200M4，AFF87-YP71M4，AFF87-YP80M4，AFF87-YP90M4，AFF87-YPB100M4，AFF87-YPB112M4，AFF87-YPB132M4，AFF87-YPB160M4，AFF87-YPB180M4，AFF87-YPB200M4，AFF87-YPB71M4，AFF87-YPB80M4，AFF87-YPB90M4，AFF87-YPE100M4，AFF87-YPE112M4，AFF87-YPE132M4，AFF87-YPE160M4，AFF87-YPE180M4，AFF87-YPE200M4，AFF87-YPE71M4，AFF87-YPE80M4，AFF87-YPE90M4，AFF87-YS100M4，AFF87-YS112M4，AFF87-YS132M4，AFF87-YS160M4，AFF87-YS180M4，AFF87-YS200M4，AFF87-YS71M4，AFF87-YS80M4，AFF87-YS90M4，AFF87-YVB100M4，AFF87-YVB112M4，AFF87-YVB132M4，AFF87-YVB160M4，AFF87-YVB180M4，AFF87-YVB200M4，AFF87-YVB71M4，AFF87-YVB80M4，AFF87-YVB90M4，AFF87-YVP100M4，AFF87-YVP112M4，AFF87-YVP132M4，AFF87-YVP160M4，AFF87-YVP180M4，AFF87-YVP200M4，AFF87-YVP71M4，AFF87-YVP80M4，AFF87-YVP90M4，AFF87-YVPEJ100M4，AFF87-YVPEJ112M4，AFF87-YVPEJ132M4，AFF87-YVPEJ160M4，AFF87-YVPEJ180M4，AFF87-YVPEJ200M4，AFF87-YVPEJ71M4，AFF87-YVPEJ80M4，AFF87-YVPEJ90M4，GFF89-Y0.37KW，GFF89-Y0.55KW，GFF89-Y0.75KW，GFF89-Y1.1KW，GFF89-Y1.5KW，GFF89-Y100M4，GFF89-Y112M4，GFF89-Y11KW，GFF89-Y132M4，GFF89-Y15KW，GFF89-Y160M4，GFF89-Y18.5KW，GFF89-Y180M4，GFF89-Y2.2KW，GFF89-Y200M4，GFF89-Y22KW，GFF89-Y3KW，GFF89-Y4KW，GFF89-Y5.5KW，GFF89-Y7.5KW，GFF89-Y71M4，GFF89-Y80M4，GFF89-Y90M4，GFF89-YB100M4，GFF89-YB112M4，GFF89-YB132M4，GFF89-YB160M4，GFF89-YB180M4，GFF89-YB200M4，GFF89-YB71M4，GFF89-YB80M4，GFF89-YB90M4，GFF89-YDP100M4，GFF89-YDP112M4，GFF89-YDP132M4，GFF89-YDP160M4，GFF89-YDP180M4，GFF89-YDP200M4，GFF89-YDP71M4，GFF89-YDP80M4，GFF89-YDP90M4，GFF89-YE100M4，GFF89-YE112M4，GFF89-YE132M4，GFF89-YE160M4，GFF89-YE180M4，GFF89-YE200M4，GFF89-YE71M4，GFF89-YE80M4，GFF89-YE90M4，GFF89-YEJ100M4，GFF89-YEJ112M4，GFF89-YEJ132M4，GFF89-YEJ160M4，GFF89-YEJ180M4，GFF89-YEJ200M4，GFF89-YEJ71M4，GFF89-YEJ80M4，GFF89-YEJ90M4，GFF89-YEJB100M4，GFF89-YEJB112M4，GFF89-YEJB132M4，GFF89-YEJB160M4，GFF89-YEJB180M4，GFF89-YEJB200M4，GFF89-YEJB71M4，GFF89-YEJB80M4，GFF89-YEJB90M4，GFF89-YP100M4，GFF89-YP112M4，GFF89-YP132M4，GFF89-YP160M4，GFF89-YP180M4，GFF89-YP200M4，GFF89-YP71M4，GFF89-YP80M4，GFF89-YP90M4，GFF89-YPB100M4，GFF89-YPB112M4，GFF89-YPB132M4，GFF89-YPB160M4，GFF89-YPB180M4，GFF89-YPB200M4，GFF89-YPB71M4，GFF89-YPB80M4，GFF89-YPB90M4，GFF89-YPE100M4，GFF89-YPE112M4，GFF89-YPE132M4，GFF89-YPE160M4，GFF89-YPE180M4，GFF89-YPE200M4，GFF89-YPE71M4，GFF89-YPE80M4，GFF89-YPE90M4，GFF89-YS100M4，GFF89-YS112M4，GFF89-YS132M4，GFF89-YS160M4，GFF89-YS180M4，GFF89-YS200M4，GFF89-YS71M4，GFF89-YS80M4，GFF89-YS90M4，GFF89-YVB100M4，GFF89-YVB112M4，GFF89-YVB132M4，GFF89-YVB160M4，GFF89-YVB180M4，GFF89-YVB200M4，GFF89-YVB71M4，GFF89-YVB80M4，GFF89-YVB90M4，GFF89-YVP100M4，GFF89-YVP112M4，GFF89-YVP132M4，GFF89-YVP160M4，GFF89-YVP180M4，GFF89-YVP200M4，GFF89-YVP71M4，GFF89-YVP80M4，GFF89-YVP90M4，GFF89-YVPEJ100M4，GFF89-YVPEJ112M4，GFF89-YVPEJ132M4，GFF89-YVPEJ160M4，GFF89-YVPEJ180M4，GFF89-YVPEJ200M4，GFF89-YVPEJ71M4，GFF89-YVPEJ80M4，GFF89-YVPEJ90M4。

FF89減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.ttgylm.com/product/list-ffxiliejiansuji-cn.html

推薦類似型號：F89減速機
